- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SN75LVDS84ADGG
- Part Number SN75LVDS84ADGG
- Manufacturer Texas Instruments
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DGG (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAG
- Released Date Dec 1, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SN75LVDS84ADGG Details
-
Manufacturer Part Number:
SN75LVDS84ADGG
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Package Description:
TSSOP-48
-
Pin Count:
48
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
SN75LVDS84ADGG Frequently Asked Questions (FAQs)
-
The maximum cable length supported by the SN75LVDS84ADGG is dependent on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends a maximum cable length of 10 meters (33 feet) for a single-ended signal and 20 meters (66 feet) for a differential signal.
-
The SN75LVDS84ADGG requires a 100-ohm differential termination resistor at the receiving end of the transmission line. This termination resistor should be placed as close to the receiver as possible to minimize signal reflections.
-
The power consumption of the SN75LVDS84ADGG is dependent on the operating frequency and the output load. However, according to the datasheet, the typical power consumption is around 135 mW at a 3.3V supply voltage and a 65 MHz clock frequency.
-
While the SN75LVDS84ADGG is designed specifically for LVDS applications, it can be used for other high-speed differential signaling applications with some modifications. However, it's essential to ensure that the device is operated within its specified electrical characteristics and that the application meets the device's timing and signal integrity requirements.
-
To ensure signal integrity with the SN75LVDS84ADGG, it's essential to follow proper PCB design and layout practices, such as using controlled impedance transmission lines, minimizing signal routing distances, and using signal shielding and grounding techniques. Additionally, the use of a common-mode filter or a signal repeater may be necessary for longer transmission lines or noisy environments.
Trust Checks
Community Provided
System Verified
Community Approved
SN75LVDS84ADGG Overview

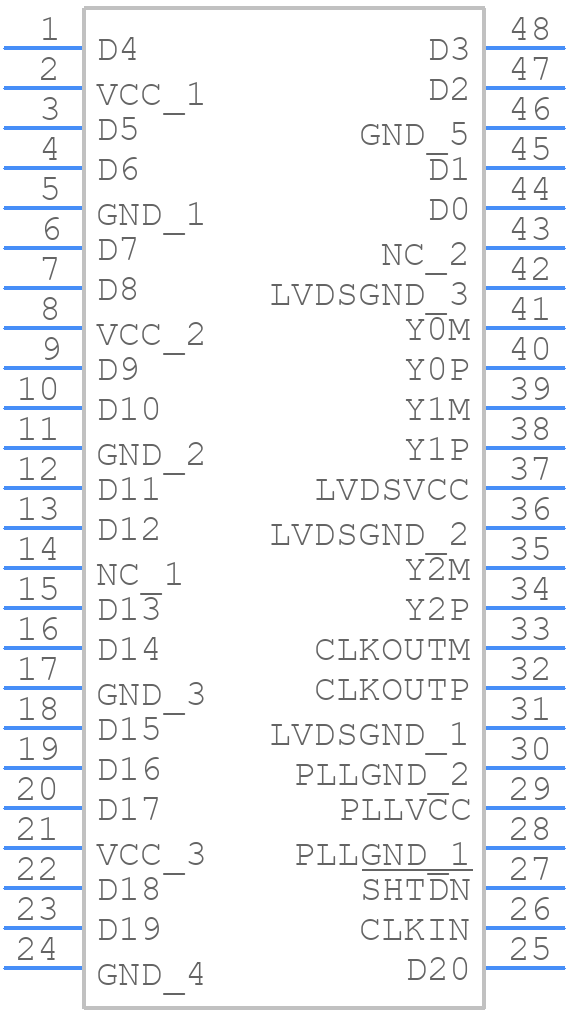

Use the download button to access the SN75LVDS84ADGG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75L,
or try a keyword search, such as Line Driver or Receivers
