A good PCB layout for the TAS2555YZR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
To optimize the TAS2555YZR for low noise and distortion, use a low-ESR capacitor for the power supply, keep the analog and digital grounds separate, and use a high-quality audio codec. Additionally, ensure that the device is operated within its recommended operating conditions.
The TAS2555YZR can handle up to 2.5 W of power per channel. However, the actual power handling capability depends on the specific application, PCB layout, and thermal design.
The TAS2555YZR can be configured for different audio formats using the I2C interface. The device supports various audio formats, including PCM, I2S, and DSP. Refer to the datasheet and application notes for specific configuration details.
The TAS2555YZR has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. A thermal via or thermal pad on the PCB can help to dissipate heat. Additionally, ensure good airflow around the device to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2555YZR Overview

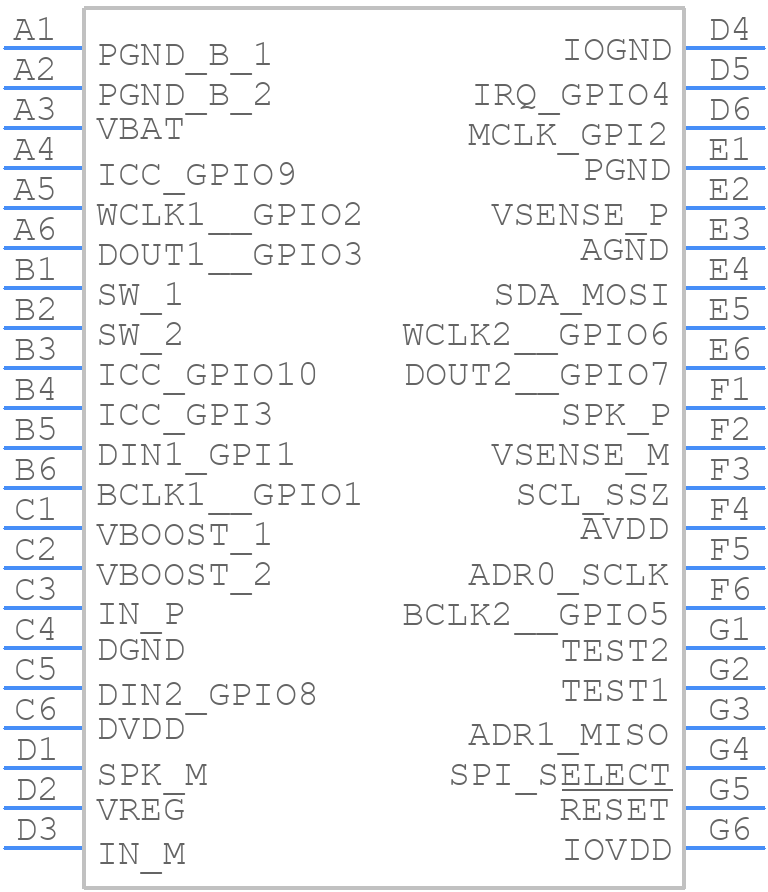

Use the download button to access the TAS2555YZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS25,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
