A good PCB layout for the TAS5630PHDR involves keeping the power supply lines (VIN, VCC) separate from the analog signal lines, using a solid ground plane, and placing the decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the bottom of the package. TI provides thermal design guidelines in the datasheet and application notes.
The recommended input clock frequency for the TAS5630PHDR is between 256 kHz and 512 kHz. However, the device can operate with clock frequencies up to 1 MHz. Consult the datasheet for specific clock frequency requirements.
The TAS5630PHDR can be configured for mono or stereo operation by setting the MODE pin high or low, respectively. In mono mode, the device outputs a single channel, while in stereo mode, it outputs two channels. Consult the datasheet for specific configuration details.
The maximum power output of the TAS5630PHDR depends on the supply voltage and load impedance. With a 12V supply and 4Ω load, the device can deliver up to 20W per channel. Consult the datasheet for specific power output ratings.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5630PHDR Overview

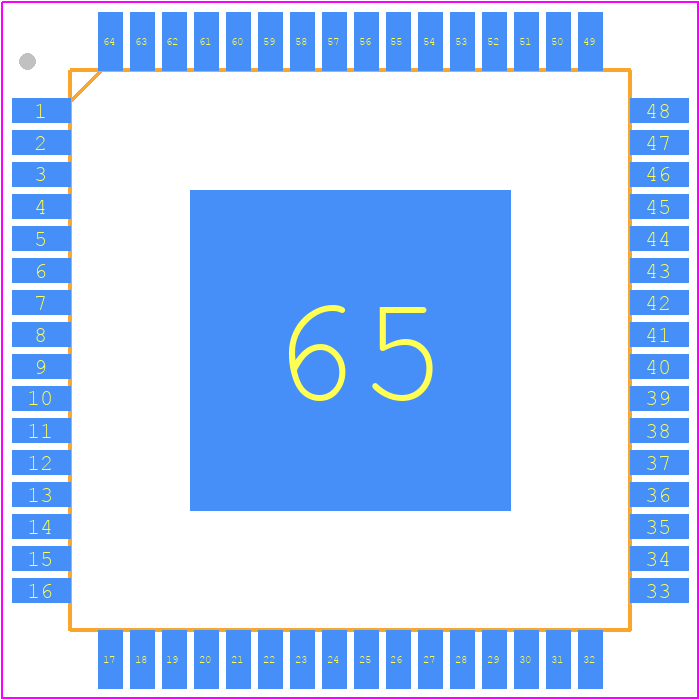

Use the download button to access the TAS5630PHDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56,
or try a keyword search, such as Audio/Video Amplifiers
