FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
80 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TAS5706BPAP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and routing guide in the TAS5706BPAP Evaluation Module (EVM) user's guide, which can be found on the TI website. It's essential to follow this guide to ensure proper operation and minimize electromagnetic interference (EMI).
To optimize the TAS5706BPAP for low noise and distortion, ensure that the power supply is well-regulated and decoupled, use a low-ESR capacitor for the PVCC pin, and keep the analog and digital grounds separate. Additionally, use a shielded cable for the audio input and output, and minimize the length of the audio signal traces.
The TAS5706BPAP is a 20-W class-D audio amplifier, and its maximum power handling capability depends on the supply voltage, load impedance, and ambient temperature. According to the datasheet, the device can deliver up to 20 W of continuous power into a 4-Ω load with a 12-V supply voltage. However, it's essential to ensure that the device is properly heat-sinked and that the maximum junction temperature is not exceeded.
The TAS5706BPAP has built-in fault detection and protection features, including overcurrent protection, overtemperature protection, and undervoltage protection. To implement fault detection and protection, connect the FLT pin to a microcontroller or a dedicated fault detection circuit, and use the fault flags to trigger a reset or shutdown sequence in case of a fault event.
Yes, the TAS5706BPAP can be used in a bridged configuration to deliver higher power output. However, this requires careful consideration of the power supply, heat sinking, and PCB layout to ensure proper operation and minimize distortion. Texas Instruments provides a bridged amplifier configuration example in the TAS5706BPAP datasheet and application notes.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5706BPAP Overview

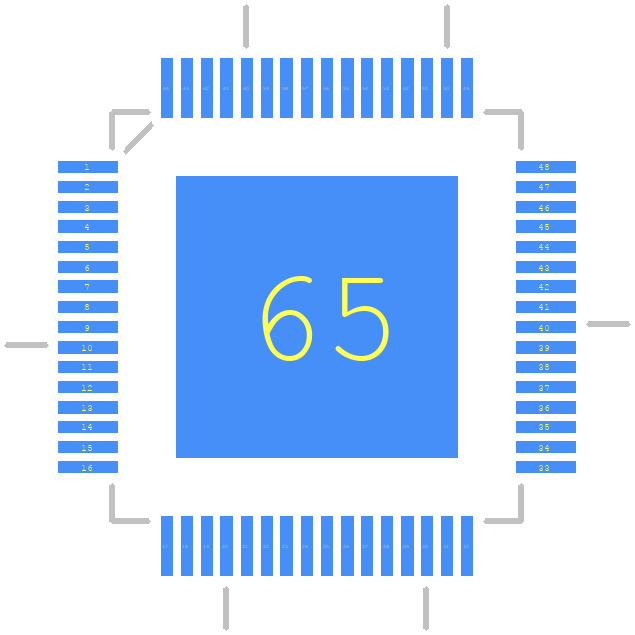

Use the download button to access the TAS5706BPAP schematic symbol, PCB footprint, and 3D model.
