FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
80 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TAS5706BPAPR Frequently Asked Questions (FAQs)
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
The TAS5706BPAPR can be configured for different audio formats using the I2C interface. The device has several registers that control the audio format, such as the sample rate, bit depth, and channel mode. Refer to the datasheet for the specific register settings for each audio format.
The maximum power dissipation of the TAS5706BPAPR is dependent on the operating conditions, such as the supply voltage, clock frequency, and output load. However, the typical power dissipation is around 250mW. It is recommended to perform thermal analysis and design the PCB to ensure proper heat dissipation.
To troubleshoot audio issues, first verify that the device is properly configured and that the clock signal is stable. Check the audio output for any signs of distortion or noise. Use an oscilloscope to measure the audio signal and verify that it is within the expected specifications. Also, check the I2C communication and verify that the device is receiving the correct commands and data.
While the TAS5706BPAPR is optimized for a clock frequency of 12.288MHz, it can operate with other clock frequencies. However, this may affect the device's performance and audio quality. It is recommended to consult the datasheet and perform thorough testing to ensure that the device meets the required specifications with the chosen clock frequency.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5706BPAPR Overview

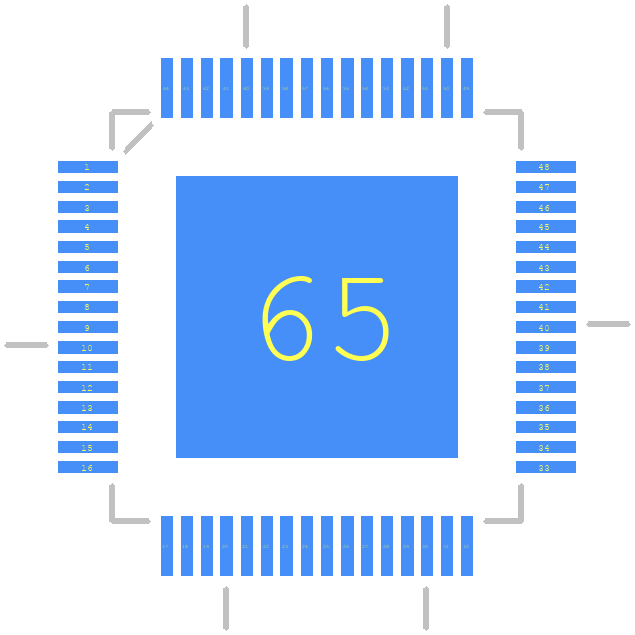

Use the download button to access the TAS5706BPAPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
