FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Current-Max:
370 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
TFP401AIPZPRQ1 Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 0.1uF) close to the VCC pin and a ferrite bead or a 10-ohm resistor in series with the HDMI signal lines to reduce EMI.
Use the I2C interface to configure the device. Set the desired resolution and frequency using the registers specified in the datasheet. For example, to set the resolution to 1080p at 60Hz, write 0x01 to register 0x10 and 0x02 to register 0x11. Refer to the datasheet for the complete register map and configuration details.
The TFP401AIPZPRQ1 supports HDMI cable lengths up to 30 meters (98 feet) at 1080p resolution. However, the actual cable length may vary depending on the cable quality, signal frequency, and environmental factors. It's recommended to use high-quality HDMI cables and follow proper cable termination and routing practices to minimize signal degradation.
Use an oscilloscope to measure the HDMI signal quality at the transmitter and receiver ends. Check for signal amplitude, rise time, and jitter. Verify that the HDMI signal is within the specified voltage range (0.5V to 1.2V) and that the clock frequency is within the specified range (25MHz to 340MHz). Also, ensure that the HDMI cable is properly terminated and that there are no signal reflections or crosstalk.
Yes, the TFP401AIPZPRQ1 can be used with an HDMI switch or repeater. However, ensure that the switch or repeater is compatible with the HDMI version (1.4 or 2.0) and resolution supported by the TFP401AIPZPRQ1. Also, verify that the switch or repeater does not degrade the HDMI signal quality or introduce significant latency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFP401AIPZPRQ1 Overview

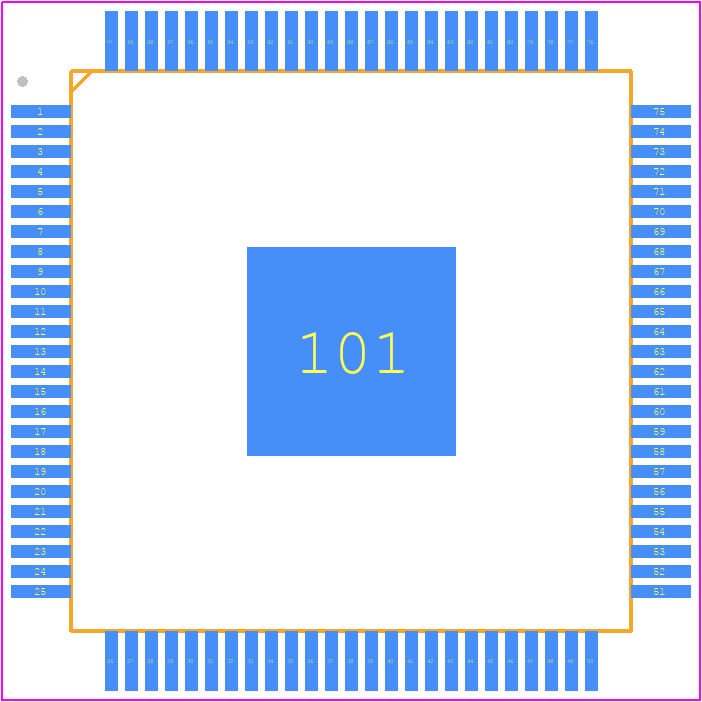

Use the download button to access the TFP401AIPZPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFP40,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
