FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
400 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
TFP401APZP Frequently Asked Questions (FAQs)
A good PCB layout for the TFP401APZP involves placing the device close to the HDMI connector, using a solid ground plane, and minimizing the length of the differential pairs. TI provides a recommended layout in the TFP401APZP evaluation module documentation.
The TFP401APZP has a thermal pad that must be connected to a solid ground plane to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB. Additionally, ensure good airflow around the device and avoid blocking the airflow with components or obstacles.
The TFP401APZP supports cable lengths up to 30 meters (100 feet) at 3.4 Gbps, but the actual maximum length depends on the cable quality, signal frequency, and system noise. It's recommended to use high-quality cables and follow the HDMI specification guidelines for cable length and termination.
The TFP401APZP is a versatile device that supports multiple HDMI versions. To configure it for a specific version, refer to the device's register map and programming guide. For example, to enable HDMI 2.0, set the corresponding registers to enable the necessary features, such as 4K resolution and HDR support.
The TFP401APZP requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is: 1) VCC, 2) AVCC, and 3) DVCC. The power-down sequence is the reverse of the power-up sequence. Ensure that the power supplies are stable and within the recommended voltage ranges.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFP401APZP Overview

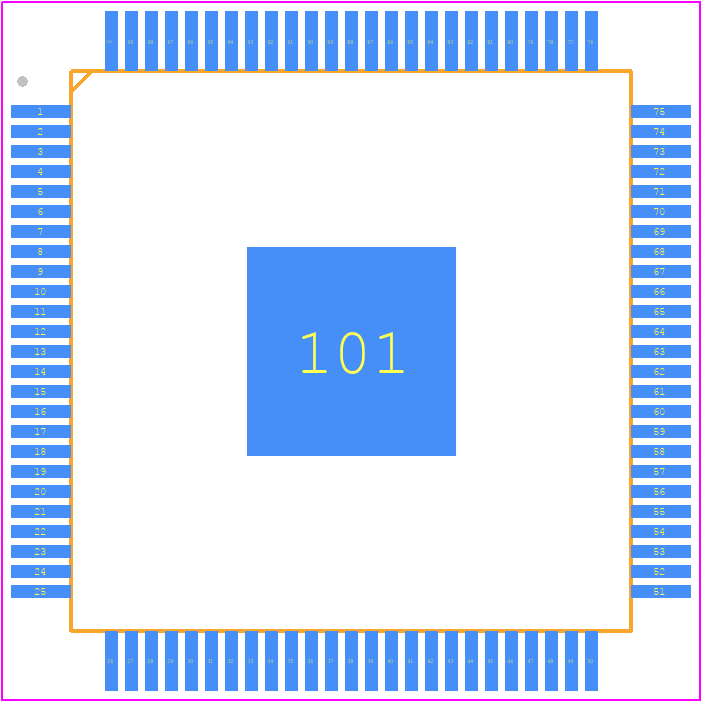

Use the download button to access the TFP401APZP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFP40,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
