THS3202DGK - Texas Instruments

Description: Texas Instruments THS3202DGK, Dual Current Feedback Op Amp, 2000MHz, 9 V, 12 V, 8-Pin MSOP

Download THS3202DGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

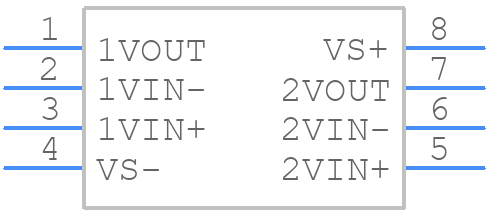

Symbol
THS3202DGK - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS3202DGK - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
THS3202DGK - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

THS3202DGK Details

  • Manufacturer Part Number:

    THS3202DGK

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 6.6V TO 15V SINGLE SUPPLY

  • Bandwidth-Nom:

    1800000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    10 dB

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    7.5 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

THS3202DGK Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS3202DGK evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The input termination resistors (RIN) should be chosen based on the source impedance and the desired input impedance. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific application requirements. TI also provides an input termination calculator tool to help with the selection process.
  • The THS3202DGK is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and power consumption at higher temperatures. Consult the datasheet and application notes for more information on temperature-related considerations.
  • Yes, the THS3202DGK can be used in a single-ended configuration, but it's essential to follow the recommended single-ended to differential conversion circuitry and layout guidelines to ensure optimal performance and minimize common-mode noise.
  • Common-mode noise issues can be troubleshooted by checking the PCB layout, ensuring proper grounding and shielding, and using common-mode filters or chokes. TI also provides application notes and technical articles on common-mode noise reduction techniques for high-speed amplifiers like the THS3202DGK.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS3202DGK Overview

Use the download button to access the THS3202DGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS32, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
