THS3202DGNG4 - Texas Instruments

Description: High Speed Operational Amplifiers 2GHz Current Feedback Amplifier

Download THS3202DGNG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

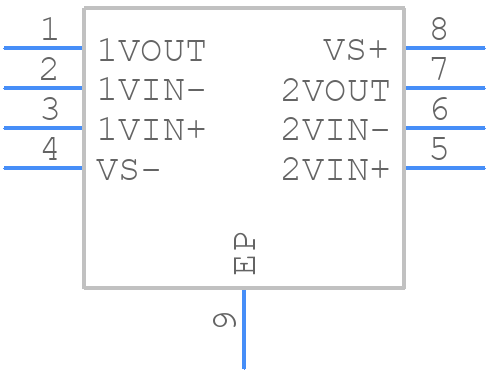

Symbol
THS3202DGNG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS3202DGNG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D
click to zoom
3D Models
THS3202DGNG4 - Texas Instruments - 3D model - Small Outline Packages - DGN0008D
click to zoom

THS3202DGNG4 Details

  • Manufacturer Part Number:

    THS3202DGNG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 6.6V TO 15V SINGLE SUPPLY

  • Bandwidth-Nom:

    1800000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    10 dB

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    7.5 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

THS3202DGNG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS3202DGNG4 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The input termination resistors (RIN) should be selected based on the input signal impedance and the desired gain. A higher RIN value will result in a higher gain, but may also increase noise and distortion. TI provides a gain calculation tool and application notes to help with resistor selection.
  • The THS3202DGNG4 is specified to operate from -40°C to 125°C, but the maximum operating temperature range may be limited by the specific application and the thermal design of the system. It's essential to consider thermal management and heat sinking to ensure reliable operation.
  • To minimize EMI, use proper shielding, grounding, and layout techniques. Keep the amplifier and its input/output traces away from noise sources, use a solid ground plane, and consider adding EMI filters or shielding cans to sensitive components.
  • A recommended power supply decoupling scheme includes using a 10-μF ceramic capacitor in parallel with a 1-μF ceramic capacitor, both placed close to the amplifier's power pins. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS3202DGNG4 Overview

Use the download button to access the THS3202DGNG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS32, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
