IT CAN ALSO OPERATE WITH 6.6V TO 15V SINGLE SUPPLY
Bandwidth-Nom:
1800000 kHz
Consumer IC Type:
VIDEO AMPLIFIER
Gain:
10 dB
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
7.5 V
Supply Voltage-Min (Vsup):
3.3 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
THS3202DGNR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS3202DGNR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input termination resistors (RIN) should be chosen based on the source impedance of the signal and the desired input impedance of the amplifier. A general guideline is to choose RIN = 2 * ZS, where ZS is the source impedance. However, the optimal value may vary depending on the specific application and signal characteristics.
The maximum power dissipation of the THS3202DGNR is approximately 1.4W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to keep the ambient temperature within the recommended operating range. Additionally, the device should be operated within the recommended supply voltage and current limits.
The THS3202DGNR has a built-in anti-aliasing filter, but additional filtering may be necessary depending on the specific application. External filters, such as RC filters or active filters, can be used to filter out high-frequency noise and aliasing. The filter design should be based on the specific signal characteristics and requirements of the application.
Texas Instruments recommends using a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor for supply bypassing and decoupling. The capacitors should be placed as close as possible to the device's power pins to minimize inductance and ensure effective noise filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3202DGNR Overview

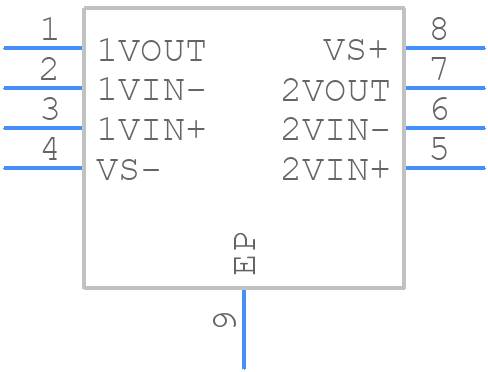

Use the download button to access the THS3202DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS32,
or try a keyword search, such as Audio/Video Amplifiers
