Please enter a minimum 3 letters or numbers
Technical Content
Part Image

THS3202DGN - Texas Instruments

Description: Texas Instruments THS3202DGN, Dual Current Feedback Op Amp, 2000MHz, 12 V, 9 V, 8-Pin MSOP

Download THS3202DGN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

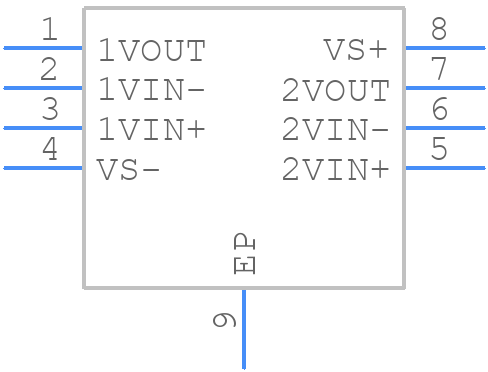

THS3202DGN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS3202DGN - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN (S-PDSO-G8)_1
click to zoom
3D Models
THS3202DGN - Texas Instruments - 3D model - Small Outline Packages - DGN (S-PDSO-G8)_1
click to zoom

THS3202DGN Details

  • Manufacturer Part Number:

    THS3202DGN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 6.6V TO 15V SINGLE SUPPLY

  • Bandwidth-Nom:

    1800000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    10 dB

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    7.5 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

THS3202DGN Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS3202DGN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The choice of gain resistors depends on the desired gain and bandwidth of the amplifier. A higher gain resistor value will result in higher gain but may reduce the bandwidth. TI provides a gain resistor calculator tool to help with the selection.
  • The maximum power dissipation of the THS3202DGN is 1.4W. However, this can be limited by the thermal resistance of the package and the PCB. It's essential to ensure proper thermal management to prevent overheating.
  • Yes, the THS3202DGN can be used as a single-ended amplifier by tying the negative input to ground and using the positive input as the signal input. However, this will reduce the common-mode rejection ratio and may affect the noise performance.
  • The THS3202DGN has a built-in low-pass filter, but additional filtering may be required depending on the application. A simple RC filter or a more complex active filter can be used to filter out high-frequency noise.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS3202DGN Overview

Use the download button to access the THS3202DGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS32, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to THS3202DGN

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

THS3202DGN Alternates

Showing results

Image Part Number Model
Part Image THS3202DGK Texas Instruments

Video Amplifier, 2 Channel(s), 2 Func, Bipolar, PDSO8
Part Image THS3202DGNRG4 Texas Instruments

Video Amplifier, 2 Channel(s), 2 Func, Bipolar, PDSO8
Part Image THS3202DGKRG4 Texas Instruments

Video Amplifier, 1 Channel(s), 2 Func, Bipolar, PDSO8
Part Image THS3202DGKG4 Texas Instruments

Video Amplifier, 1 Channel(s), 2 Func, Bipolar, PDSO8
