TL7700CMPWPSEP - Texas Instruments

Description: Radiation Hardened Supply Voltage Supervisor In Space Enhanced Plastic

Download TL7700CMPWPSEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

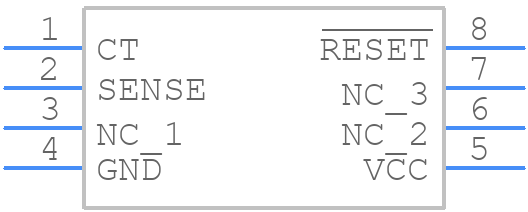

TL7700CMPWPSEP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TL7700CMPWPSEP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0008A
click to zoom
3D Models
TL7700CMPWPSEP - Texas Instruments - 3D model - Small Outline Packages - PW0008A
click to zoom

TL7700CMPWPSEP Details

  • Manufacturer Part Number:

    TL7700CMPWPSEP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-04-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Dose:

    20k Rad(Si) V

  • Width:

    3 mm

TL7700CMPWPSEP Frequently Asked Questions (FAQs)

  • A good PCB layout for the TL7700CMPWPSEP involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • Choose capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are suitable for most applications.
  • The TL7700CMPWPSEP is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design.
  • Yes, the TL7700CMPWPSEP is AEC-Q100 qualified and suitable for high-reliability and automotive applications, but additional testing and validation may be required for specific use cases.
  • Use an oscilloscope to monitor the input and output voltages, and check for proper PCB layout, capacitor selection, and thermal design. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TL7700CMPWPSEP Overview

Use the download button to access the TL7700CMPWPSEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL770, or try a keyword search, such as Power Management Circuits
