TLC3548CDW - Texas Instruments

Description: TLC3548CDW, 14 bit ADC Differential, SPI, 24-Pin SOIC

Download TLC3548CDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

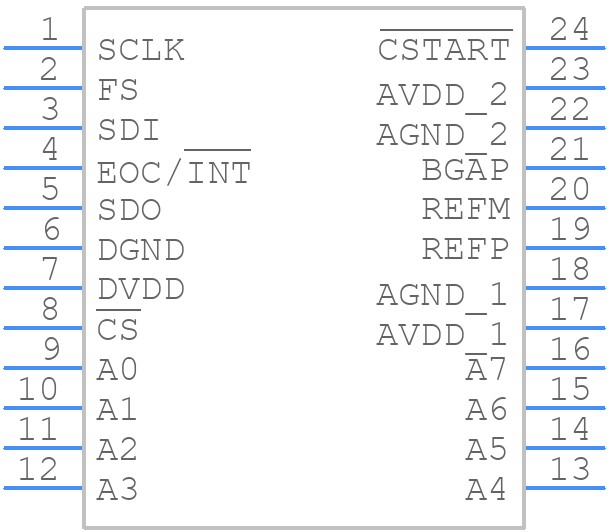

TLC3548CDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC3548CDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G24)
click to zoom
3D Models
TLC3548CDW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G24)
click to zoom

TLC3548CDW Details

  • Manufacturer Part Number:

    TLC3548CDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    2.785 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.6 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLC3548CDW Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
  • The TLC3548CDW is specified to operate from -40°C to 125°C. Ensure good thermal design, use a heat sink if necessary, and avoid overheating the device. Monitor the device temperature using the thermal pad or an external temperature sensor.
  • Power up the device in the following sequence: VCC, AVCC, and then the analog input signals. Ensure that the power supplies are stable and within the recommended voltage range before applying analog input signals.
  • Ensure that the analog input signals are within the recommended voltage range (VCC - 1.5V to VCC + 0.5V). Use input protection diodes or voltage-limiting resistors if necessary. Avoid applying input signals that exceed the maximum ratings.
  • Use a low-impedance output driver, such as a buffer amplifier, to drive the output of the TLC3548CDW. Ensure that the output load is within the recommended range (e.g., 2kΩ to 10kΩ) and that the output voltage swing is within the specified range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC3548CDW Overview

Use the download button to access the TLC3548CDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
