- Part Number TLC5510INSLE
- Manufacturer Texas Instruments
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages

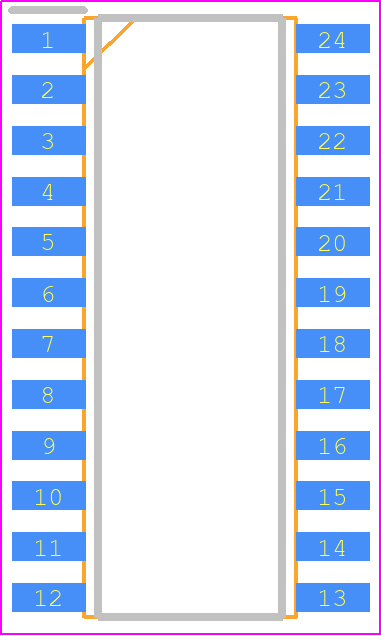

- Footprint Name Small Outline Packages - NS (R-PDSO-G24)
- Released Date Dec 20, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLC5510INSLE Details
-
Manufacturer Part Number:
TLC5510INSLE
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
PLASTIC, SOP-24
-
Pin Count:
24
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog Input Voltage-Max:
2 V
TLC5510INSLE Frequently Asked Questions (FAQs)
-
The TLC5510INSLE is a high-frequency device, so it's essential to follow good layout practices to minimize noise and ensure proper operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias under the device. A solid ground plane and decoupling capacitors are also crucial.
-
The choice of external components, such as resistors, capacitors, and inductors, depends on the specific application and desired performance. TI provides a component selection guide in the datasheet, but engineers should also consider factors like component tolerance, temperature coefficient, and parasitic effects.
-
The TLC5510INSLE is rated for operation from -40°C to 125°C, but the actual operating temperature range may be limited by the specific application and the thermal design of the system. Engineers should ensure that the device is properly heatsinked and that the system is designed to operate within the specified temperature range.
-
Troubleshooting the TLC5510INSLE requires a systematic approach, starting with a review of the schematic and layout. Engineers should check for proper power supply, clock signal, and input/output connections. They should also verify that the device is properly configured and that the system is operating within the specified parameters. TI provides a troubleshooting guide in the datasheet and application notes.
-
Yes, the TLC5510INSLE is compatible with lead-free soldering. TI uses a lead-free finish on the device, and it can be soldered using lead-free soldering processes. However, engineers should follow the recommended soldering profile and ensure that the soldering process is compatible with the device's temperature rating.
Trust Checks
Community Provided
System Verified
Community Approved
TLC5510INSLE Overview

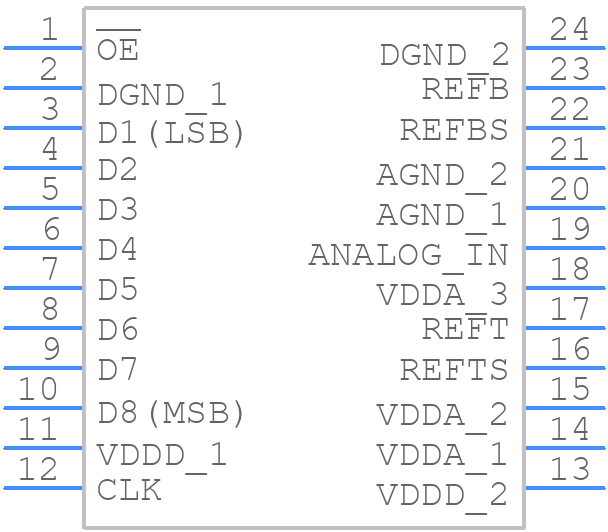

Use the download button to access the TLC5510INSLE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC55,
or try a keyword search, such as Analog to Digital Converters
