TLC5540CPW - Texas Instruments

Description: Single Channel Single ADC Semiflash 40Msps 8-bit Parallel 24-Pin TSSOP Tube

Download TLC5540CPW Model

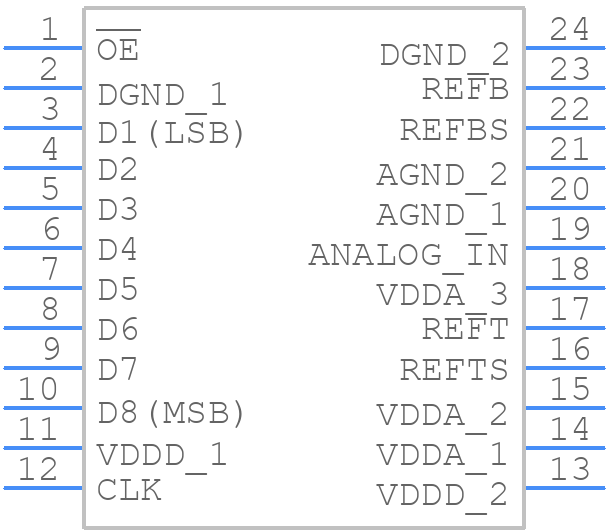

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC5540CPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
TLC5540CPW - Texas Instruments  - 3D model - Small Outline Packages - PW0024A
click to zoom

TLC5540CPW Details

  • Manufacturer Part Number:

    TLC5540CPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.025 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLC5540CPW Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The input and output traces should be kept short and away from noise sources. A good layout and routing guide can be found in the TI application note 'AN-1187 Four-Layer PCB Layout and Routing for the TLC5540'
  • The TLC5540CPW requires a single 5V power supply, and it's recommended to use a 0.1uF ceramic capacitor and a 10uF tantalum capacitor in parallel for power supply decoupling. The capacitors should be placed as close as possible to the power pins. Additionally, a 10kΩ resistor in series with the power supply can help to reduce noise and ringing.
  • The TLC5540CPW can handle clock frequencies up to 40MHz, but the maximum frequency is dependent on the specific application and the quality of the clock signal. It's recommended to use a clock frequency of 20MHz or less for most applications.
  • The TLC5540CPW's internal registers can be programmed using a 3-wire serial interface (SCLK, SDIN, and SOUT). The programming sequence and register definitions can be found in the TLC5540 datasheet. It's recommended to use a microcontroller or a dedicated programming device to program the registers.
  • The typical settling time for the TLC5540CPW's DAC outputs is around 2.5μs, but this can vary depending on the output voltage, load capacitance, and other factors. It's recommended to consult the datasheet and application notes for more information on settling time and output characteristics.
