TLC5540IPWR - Texas Instruments

Description: Single Channel Single ADC Semiflash 40Msps 8-bit Parallel 24-Pin TSSOP T/R

Download TLC5540IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

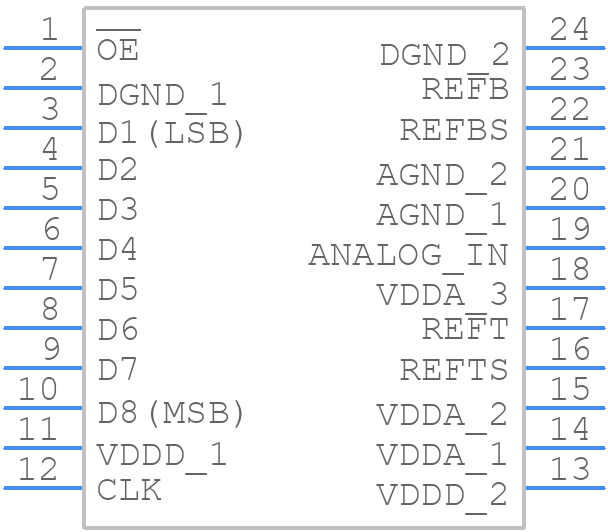

TLC5540IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC5540IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G**)
click to zoom
3D Models
TLC5540IPWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G**)
click to zoom

TLC5540IPWR Details

  • Manufacturer Part Number:

    TLC5540IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.025 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLC5540IPWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The input and output traces should be kept short and away from each other to minimize crosstalk. Additionally, the decoupling capacitors should be placed close to the device pins.
  • The TLC5540IPWR requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirements are not critical, but it's recommended to power up the device after the analog and digital power supplies are stable.
  • The maximum clock frequency for the TLC5540IPWR is 20 MHz, and it's recommended to use a clock signal with a 50% duty cycle and a rise and fall time of less than 10 ns.
  • The TLC5540IPWR can be programmed using a 3-wire serial interface, and the programming sequence is described in the datasheet. The device requires a 16-bit address and a 16-bit data word, and the programming voltage should be between 2.7V and 5.5V.
  • The TLC5540IPWR has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for reliable operation. A thermal pad is provided on the package, and it's recommended to connect it to a solid ground plane or a heat sink to ensure proper heat dissipation.
