TLC5540IPW - Texas Instruments

Description: Texas Instruments TLC5540IPW, 8 bit Parallel ADC,, 24-Pin TSSOP

Download TLC5540IPW Model

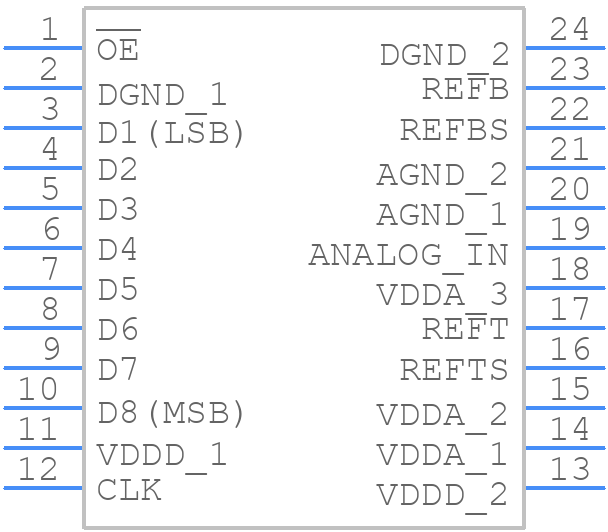

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC5540IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
TLC5540IPW - Texas Instruments  - 3D model - Small Outline Packages - PW0024A
click to zoom

TLC5540IPW Details

  • Manufacturer Part Number:

    TLC5540IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.025 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLC5540IPW Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a decoupling capacitor (e.g., 0.1uF) close to the VCC pin to filter out noise.
  • Ensure good thermal conduction by mounting the device on a heat sink or a metal core PCB, and provide adequate airflow around the device. Also, avoid operating the device near its maximum temperature rating for extended periods.
  • Power up the device in the following sequence: VCC, then VREF, and finally the input signals. This ensures that the internal voltage regulators are stable before the analog circuitry is enabled.
  • To avoid overheating, ensure that the output current does not exceed the specified maximum current (typically 20mA). Use external buffers or amplifiers if higher currents are required. Also, consider using a heat sink or a metal core PCB to dissipate heat.
  • Use a metal shield or a shielded enclosure to contain radiated emissions. Ensure good grounding and decoupling practices, and use EMI filters or chokes on the input and output lines if necessary. Additionally, consider using a spread-spectrum clock or a clock with a low EMI profile.
