TLV2556IPW - Texas Instruments

Description: 12-BIT, 200-KSPS, 11 CHANNEL, LOW POWER, SERIAL ADC WITH INTERNAL REFERENCE, 2.7V ~ 5.5V, -40°C ~ 85°C

Download TLV2556IPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

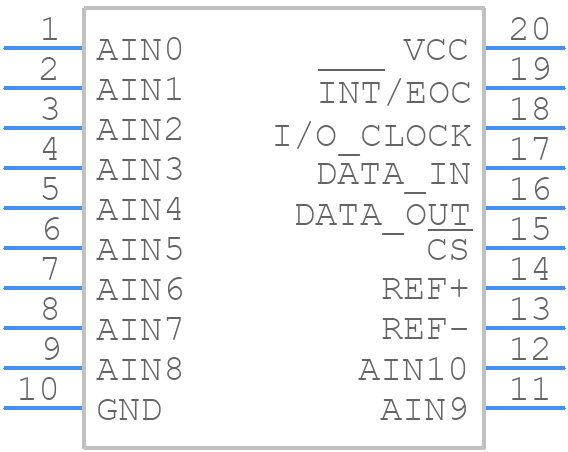

TLV2556IPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV2556IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0020A
click to zoom
3D Models
TLV2556IPW - Texas Instruments - 3D model - Small Outline Packages - PW0020A
click to zoom

TLV2556IPW Details

  • Manufacturer Part Number:

    TLV2556IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    5.54 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    11

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV2556IPW Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the power supply decoupling and place it close to the device.
  • Monitor the power supply voltage to ensure it is within the recommended range of 2.7V to 5.5V. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C. Use thermal management techniques such as heat sinks or thermal pads to prevent overheating.
  • Use a low-pass filter or a band-pass filter to remove high-frequency noise and interference. A simple RC filter or a more complex active filter can be used depending on the specific application requirements.
  • Use the gain and offset adjustment pins to adjust the gain and offset of the device. The gain can be adjusted by connecting a resistor between the gain adjustment pin and the output pin, while the offset can be adjusted by connecting a resistor between the offset adjustment pin and the output pin.
  • Common mistakes to avoid include not following proper layout and routing practices, not decoupling the power supply properly, not using a low-ESR capacitor, and not ensuring the device is operated within its recommended operating conditions.
