A good PCB layout for TLV2556MPWREP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VCC and GND pins, and a smaller capacitor (e.g., 100nF ceramic) between the AVCC and AGND pins. Place these capacitors as close to the device as possible.
The TLV2556MPWREP can operate with clock frequencies up to 3.6 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
To ensure accurate conversions, it's essential to properly filter and condition the analog input signals. Use a low-pass filter to remove high-frequency noise, and consider using a voltage divider or an op-amp to adjust the signal amplitude and impedance to match the TLV2556MPWREP's input requirements.
The TLV2556MPWREP has an internal calibration mechanism. To calibrate the device, apply a known input voltage to the analog input pins, and then use the device's calibration registers to adjust the internal offset and gain. Consult the datasheet and application notes for more information on the calibration procedure.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLV2556MPWREP Overview

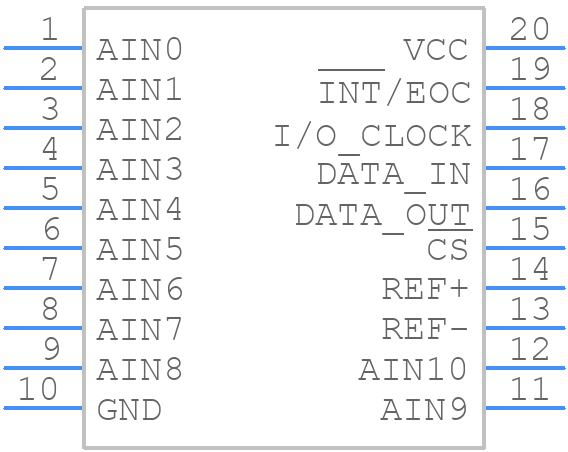

Use the download button to access the TLV2556MPWREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV25,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
