Texas Instruments provides a recommended layout and routing guide in the TLV2556IPWG4 datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops.
The TLV2556IPWG4 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a thermal pad on the PCB can be used to dissipate heat. Additionally, ensuring good airflow around the device and using a heat sink if necessary can also help with thermal dissipation.
The recommended input capacitance is typically in the range of 1-10uF, and the recommended output capacitance is typically in the range of 1-22uF. However, the optimal capacitance values depend on the specific application and should be determined through simulation and testing.
To ensure stability, it's recommended to follow the datasheet guidelines for component selection, PCB layout, and routing. Additionally, using a compensation capacitor between the output and the inverting input can help to stabilize the device. It's also recommended to simulate the circuit using a SPICE model and to test the circuit in a prototype before mass production.
The TLV2556IPWG4 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2556IPWG4 Overview

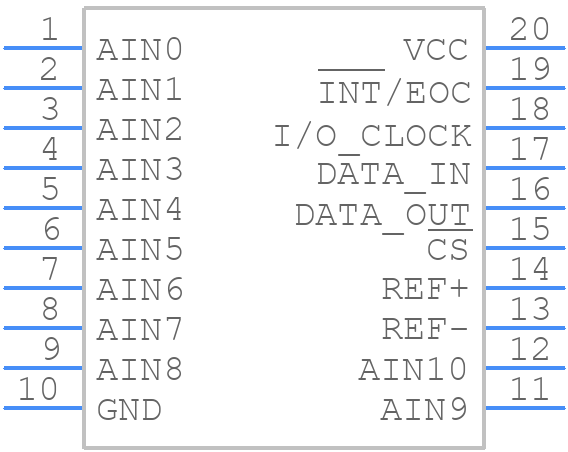

Use the download button to access the TLV2556IPWG4 schematic symbol, PCB footprint, and 3D model.
