TLV5626CDR - Texas Instruments

Description: 8-Bit, 1 us Dual DAC, Serial Input, Pgrmable Int. Ref., Settling Time

Download TLV5626CDR Model

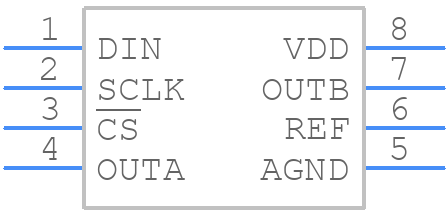

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV5626CDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D-(R-PDSO-G8)
click to zoom
3D Models
TLV5626CDR - Texas Instruments  - 3D model - Small Outline Packages - D-(R-PDSO-G8)
click to zoom

TLV5626CDR Details

  • Manufacturer Part Number:

    TLV5626CDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.278 MHz

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    5.5 µs

  • Settling Time-Nom (tstl):

    0.8 µs

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TLV5626CDR Frequently Asked Questions (FAQs)

  • The TLV5626CDR is a high-frequency device, so it's essential to follow good PCB layout practices to minimize noise and ensure signal integrity. Place the device close to the power supply, use a solid ground plane, and keep the analog and digital signal traces separate. Also, avoid routing digital signals near the analog inputs.
  • The TLV5626CDR has a built-in POR and BOR circuitry. To handle these, ensure that your power supply is stable and within the recommended voltage range. Add a capacitor between the VCC and GND pins to filter out noise and ensure a clean power-on reset. Also, consider adding a reset IC or a supervisor IC to monitor the power supply and generate a reset signal if necessary.
  • The TLV5626CDR can operate with a clock frequency up to 50 MHz. A crystal oscillator or a high-quality clock source is recommended to ensure accurate conversions. Avoid using the internal clock generator, as it may not provide the required accuracy. Instead, use an external clock source or a crystal oscillator with a suitable frequency.
  • To optimize the analog input circuitry, use a low-pass filter or a buffer amplifier to condition the input signal. Ensure the input signal is within the recommended voltage range and has a suitable impedance. Also, consider adding a voltage reference or a voltage regulator to provide a stable voltage source for the analog inputs.
  • The TLV5626CDR can be programmed using a serial interface. Use a microcontroller or a dedicated programming device to send the configuration data to the device. Ensure the programming voltage is within the recommended range, and follow the programming sequence outlined in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV5626CDR Overview

Use the download button to access the TLV5626CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TLV5626CDR

Showing 0 results

TLV5626CDR Alternates

Showing results

Image Part Number Model
Part Image TLV5626IDR Texas Instruments

D/A Converter, 1 Func, Serial Input Loading, 0.8us Settling Time, PDSO8

Part Image TLV5626CD Texas Instruments

D/A Converter, 1 Func, Serial Input Loading, 0.8us Settling Time, PDSO8

Part Image TLV5626IDRG4 Texas Instruments

D/A Converter, 1 Func, Serial Input Loading, 2.8us Settling Time, PDSO8

Part Image TLV5626IDG4 Texas Instruments

D/A Converter, 1 Func, Serial Input Loading, 2.8us Settling Time, PDSO8

Part Image TLV5626CDRG4 Texas Instruments

D/A Converter, 1 Func, Serial Input Loading, 2.8us Settling Time, PDSO8

For a full list of alternate parts for TLV5626CDR, check out Findchips.com
