TMP422AIDCNT - Texas Instruments

Description: Dual Remote and Local Temperature Sensor with N-Factor and Series-R Correction in WCSP

Download TMP422AIDCNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

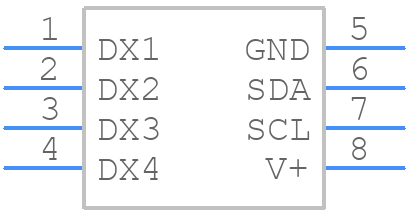

TMP422AIDCNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP422AIDCNT - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN
click to zoom
3D Models
TMP422AIDCNT - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN
click to zoom

TMP422AIDCNT Details

  • Manufacturer Part Number:

    TMP422AIDCNT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.175 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.038 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

TMP422AIDCNT Frequently Asked Questions (FAQs)

  • The TMP422AIDCNT can operate from -40°C to 125°C, making it suitable for a wide range of industrial and automotive applications.
  • The TMP422AIDCNT has an accuracy of ±1°C (max) over the operating temperature range, making it suitable for applications that require high accuracy temperature measurement.
  • The response time of the TMP422AIDCNT is typically 10 ms, allowing for fast and accurate temperature measurement in dynamic environments.
  • Yes, the TMP422AIDCNT is designed to withstand high-vibration environments and can operate reliably in applications with high mechanical stress.
  • Yes, the TMP422AIDCNT is AEC-Q100 qualified, making it suitable for use in automotive systems that require high reliability and performance.
