Texas Instruments provides a recommended PCB layout in the TPA122D datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the signal paths short, using a solid ground plane, and avoiding vias under the device.
The input capacitor should be chosen based on the input frequency and impedance. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum input voltage. Additionally, the capacitor should have a low equivalent series resistance (ESR) to minimize signal attenuation.
The maximum power dissipation of the TPA122D is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures. It's essential to perform thermal calculations to ensure the device operates within its safe operating area.
Yes, the TPA122D can be used as a line driver, but it's essential to ensure that the output stage is properly terminated to avoid signal reflections and oscillations. Additionally, the device's output current capability should be considered when driving heavy loads.
To filter out noise and EMI, it's recommended to use a combination of passive components, such as ferrite beads, inductors, and capacitors, in conjunction with proper PCB layout techniques. Additionally, shielding and grounding techniques can be employed to minimize radiated emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA122D Overview

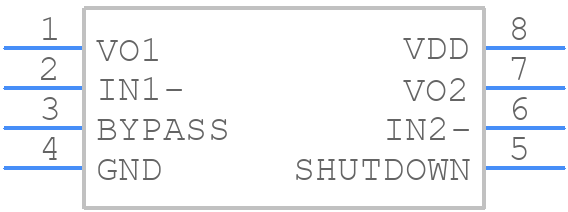

Use the download button to access the TPA122D schematic symbol, PCB footprint, and 3D model.
