Texas Instruments provides a recommended PCB layout in the TPA2000D1PWRG4 datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
The input capacitor values depend on the input voltage, output power, and desired ripple rejection. A general rule of thumb is to use a capacitor with a value of 10-22uF, with a voltage rating of at least 2x the input voltage. TI also provides a capacitor selection guide in the datasheet.
The maximum output power of the TPA2000D1PWRG4 is 2.65W per channel, but this depends on the supply voltage, load impedance, and thermal conditions. It's recommended to derate the output power based on the ambient temperature and desired reliability.
The TPA2000D1PWRG4 has built-in short-circuit protection and thermal shutdown. To implement these features, connect the SCP pin to a resistor divider network that detects the output current, and connect the TSD pin to a thermistor or thermal sensor to detect the device temperature.
The recommended power-up sequence is to apply the power supply voltage (VCC) first, followed by the input signal. The recommended power-down sequence is to remove the input signal first, followed by the power supply voltage (VCC). This helps prevent unwanted oscillations and damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2000D1PWRG4 Overview

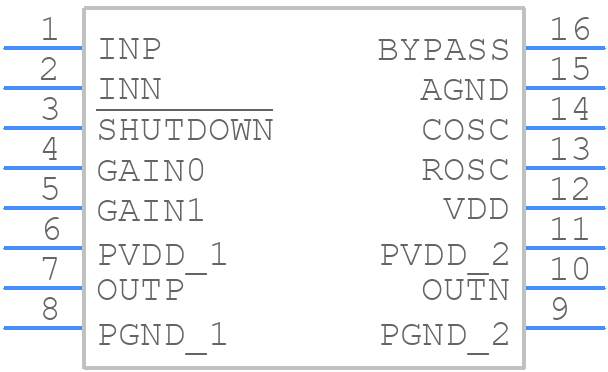

Use the download button to access the TPA2000D1PWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
