Texas Instruments provides a recommended PCB layout in the TPA311DG4 datasheet (section 10.2) and in the application note SLAA725. The layout should prioritize heat dissipation, with thermal vias and a solid ground plane to help dissipate heat.
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. TI also provides a capacitor selection guide in the datasheet (section 8.2).
The maximum power dissipation of the TPA311DG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 15W at 25°C ambient temperature, but this can be derated to 10W at 50°C ambient temperature. Proper thermal design and heat sinking are crucial to ensure reliable operation.
Yes, the TPA311DG4 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, input signal phase, and load impedance. TI provides guidance on bridged configurations in the datasheet (section 9.2) and in application notes such as SLAA725.
The TPA311DG4 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be necessary depending on the application. TI recommends using a voltage supervisor or a power-on reset circuit to ensure the device is powered up and down safely.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA311DG4 Overview

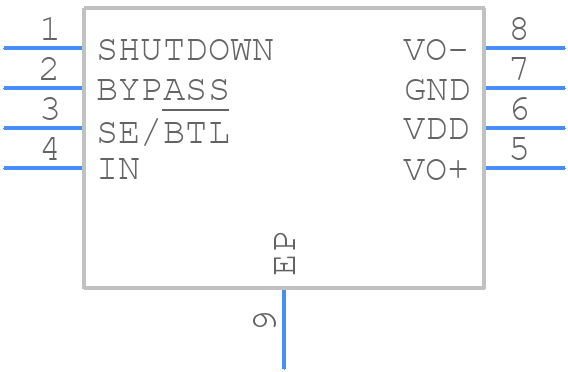

Use the download button to access the TPA311DG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
