SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
3.2 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD SILVER
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA6111A2DGNG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout guide and a thermal design guide for the TPA6111A2DGNG4.
The gain setting for the TPA6111A2DGNG4 depends on the specific application requirements. The datasheet provides a gain setting table, and TI also offers a gain calculator tool on their website to help engineers select the correct gain setting.
The maximum power dissipation of the TPA6111A2DGNG4 is dependent on the ambient temperature and the thermal resistance of the PCB. The datasheet provides a power dissipation calculation formula, and TI recommends using a thermal analysis tool to determine the maximum power dissipation for a specific application.
Yes, the TPA6111A2DGNG4 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, and TI recommends consulting the datasheet and application notes for guidance on bridged configurations.
The TPA6111A2DGNG4 has built-in EMI filtering, but additional filtering may be required depending on the specific application. TI recommends using a combination of passive and active filtering techniques, such as RC filters and common-mode chokes, to minimize noise and EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6111A2DGNG4 Overview

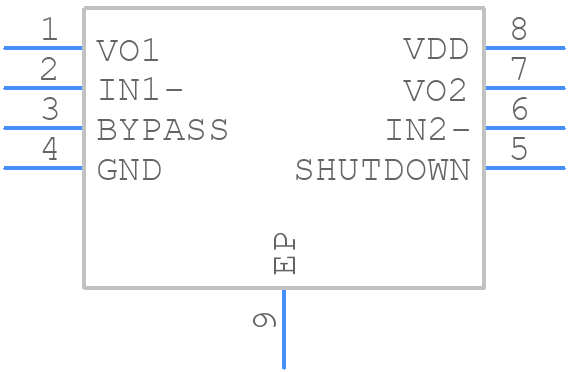

Use the download button to access the TPA6111A2DGNG4 schematic symbol, PCB footprint, and 3D model.
