SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
2 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA6205A1DGNG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout example and a thermal design guide for the TPA6205A1DGNG4.
The gain setting for the TPA6205A1DGNG4 depends on the specific application requirements. The datasheet provides a gain setting table, and TI also offers a gain calculator tool on their website to help engineers select the correct gain setting.
The maximum power dissipation of the TPA6205A1DGNG4 is dependent on the ambient temperature and the thermal resistance of the PCB. The datasheet provides a power dissipation calculation formula and a thermal resistance table to help engineers determine the maximum power dissipation for their specific application.
The TPA6205A1DGNG4 has built-in ESD protection, but additional protection measures may be necessary depending on the application. Engineers can use external ESD protection devices, such as TVS diodes, and overvoltage protection circuits to ensure the IC is protected from voltage transients and surges.
The recommended input coupling capacitor value for the TPA6205A1DGNG4 depends on the specific application requirements, such as the input signal frequency and amplitude. A general guideline is to use a capacitor value between 1uF to 10uF, but TI recommends consulting the datasheet and application notes for more specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6205A1DGNG4 Overview

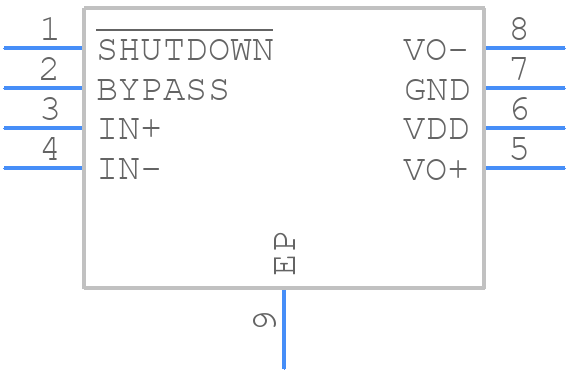

Use the download button to access the TPA6205A1DGNG4 schematic symbol, PCB footprint, and 3D model.
