SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA6211A1DGNG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, which includes a suggested component placement and routing guide to minimize electromagnetic interference (EMI) and ensure optimal performance.
The gain setting depends on the specific application requirements. The TPA6211A1DGNG4 has a gain range of 6 dB to 30 dB. A higher gain setting can provide more output power, but may also increase noise and distortion. A lower gain setting can provide a cleaner signal, but may not provide enough output power. Consult the datasheet and application notes for guidance on selecting the optimal gain setting.
The maximum power dissipation of the TPA6211A1DGNG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
To protect the TPA6211A1DGNG4 from overheating, ensure proper thermal design and layout, including a heat sink if necessary. Monitor the device temperature and reduce power consumption or shut down the device if it exceeds the maximum operating temperature. Additionally, follow the recommended thermal management guidelines in the datasheet.
The TPA6211A1DGNG4 is designed to meet the electromagnetic compatibility (EMC) requirements of various regulatory bodies, including the Federal Communications Commission (FCC) and the European Union's Electromagnetic Compatibility Directive. However, the actual EMI performance depends on the specific application, PCB layout, and component selection. Follow the recommended layout and design guidelines in the datasheet to minimize EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6211A1DGNG4 Overview

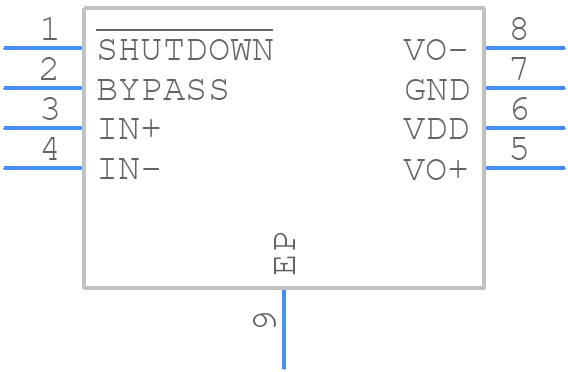

Use the download button to access the TPA6211A1DGNG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA62,
or try a keyword search, such as Audio/Video Amplifiers
