Texas Instruments provides a recommended PCB layout in the TPS1120D datasheet, which includes keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
To ensure stability, it is recommended to follow the guidelines in the datasheet for selecting the input and output capacitors, and to use a minimum of 10uF ceramic capacitor at the output. Additionally, the datasheet provides a stability analysis tool to help designers determine the optimal component values for their specific application.
The TPS1120D has an absolute maximum input voltage rating of 18V, but it is recommended to operate the device within the recommended input voltage range of 4.5V to 15V to ensure proper operation and to prevent damage to the device.
The TPS1120D is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage as the temperature increases to prevent overheating and ensure reliable operation. The datasheet provides a thermal derating chart to help designers determine the maximum output current and input voltage at elevated temperatures.
Texas Instruments provides a troubleshooting guide in the datasheet, which includes steps to identify and resolve common issues such as output voltage droop, instability, and overheating. Additionally, designers can use tools such as oscilloscopes and thermal imaging cameras to help diagnose and troubleshoot issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS1120D Overview

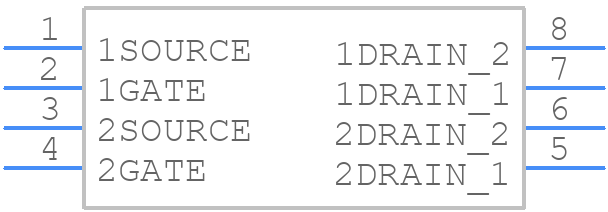

Use the download button to access the TPS1120D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS11,
or try a keyword search, such as Small Signal Field-Effect Transistors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
