TPS2066DGN-1 - Texas Instruments

Description: Current-Limited, Power-Distribution Switches with Output Discharge resistor

Download TPS2066DGN-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

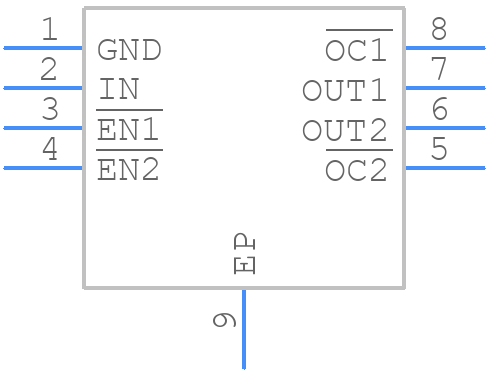

TPS2066DGN-1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2066DGN-1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPS2066DGN-1//
click to zoom
3D Models
TPS2066DGN-1 - Texas Instruments - 3D model - Small Outline Packages - TPS2066DGN-1//
click to zoom

TPS2066DGN-1 Details

  • Manufacturer Part Number:

    TPS2066DGN-1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2066DGN-1 Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPS2066DGN-1 is 2A per channel, with a total current limit of 4A for both channels combined.
  • To ensure safe operation in high-temperature environments, ensure that the device is properly heatsinked, and the thermal pad is connected to a copper plane on the PCB. Also, follow the recommended layout and thermal design guidelines provided in the datasheet.
  • The EN (enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power-saving modes or to control the device's operation.
  • The TPS2066DGN-1 has built-in overcurrent protection. When an overcurrent condition is detected, the device will limit the current to prevent damage. If the overcurrent condition persists, the device will shut down to prevent damage. The device will automatically restart when the fault is removed.
  • The recommended PCB layout for the TPS2066DGN-1 involves placing the device near the power input, using a solid ground plane, and minimizing the length of the power traces. Also, ensure that the thermal pad is connected to a copper plane on the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2066DGN-1 Overview

Use the download button to access the TPS2066DGN-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
