A good PCB layout for the TPS23755RJJT involves placing the device close to the PoE input, using a solid ground plane, and keeping the power traces short and wide. Additionally, it's recommended to use a common mode choke and a TVS diode for ESD protection.
To ensure proper power-up and configuration, make sure to follow the recommended power-up sequence, which involves applying the input voltage, then the enable signal, and finally the clock signal. Also, ensure that the device is properly configured through the I2C interface.
The TPS23755RJJT has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device away from other heat sources.
To troubleshoot issues with the TPS23755RJJT, start by checking the input voltage, enable signal, and clock signal. Verify that the device is properly configured through the I2C interface. Use an oscilloscope to monitor the device's signals and check for any signs of electrical overstress or ESD damage.
Yes, the TPS23755RJJT can be used in non-PoE applications, but it requires modifications to the input circuitry and the removal of the PoE detection circuitry. Additionally, the device's configuration registers may need to be modified to accommodate the non-PoE application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS23755RJJT Overview

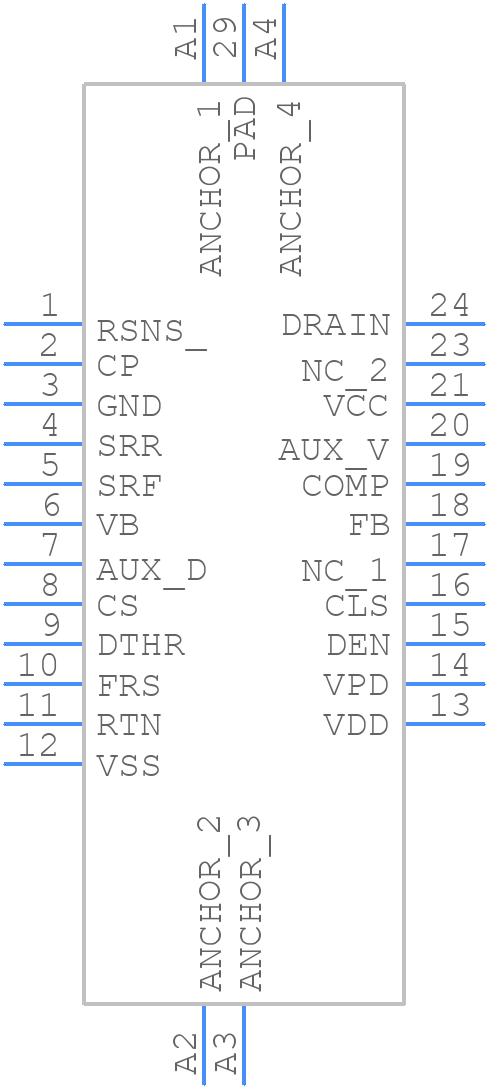

Use the download button to access the TPS23755RJJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
