Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the power traces short and wide, using a solid ground plane, and minimizing vias and thermal reliefs.
The input capacitor value depends on the input voltage ripple, output current, and switching frequency. A general rule of thumb is to choose a capacitor with a value between 10uF to 22uF, but it's recommended to consult the datasheet and perform simulations to determine the optimal value for your specific application.
The TPS2393PWR has a maximum ambient operating temperature of 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
Yes, the TPS2393PWR is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the required standards and specifications.
To troubleshoot issues with the TPS2393PWR, start by checking the PCB layout, component values, and soldering quality. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2393PWR Overview

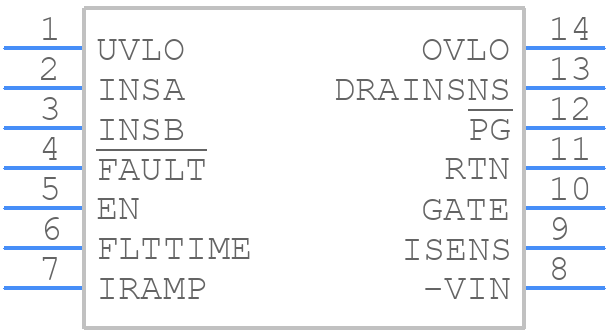

Use the download button to access the TPS2393PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
