Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the device within its recommended operating temperature range.
The maximum current rating for the output pins is not explicitly stated in the datasheet, but it's recommended to follow the guidelines for output current and power dissipation to avoid overheating and ensure reliable operation. Typically, the output current should not exceed 1.5A per channel.
The TPS254900AIRVCRQ1 is a surface-mount device, and its reliability in high-vibration environments depends on the quality of the PCB assembly and the mounting method. It's recommended to follow proper PCB design and assembly guidelines, and consider using a vibration-resistant mounting method, such as a screw-down or adhesive-based mounting system.
To troubleshoot issues with the device, start by reviewing the datasheet and application notes, and checking the PCB design and assembly for any errors or omissions. Use a multimeter or oscilloscope to measure the input and output voltages, and check for any signs of overheating or electrical overstress. If the issue persists, consider consulting with a Texas Instruments support engineer or a qualified electronics design expert.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS254900AIRVCRQ1 Overview

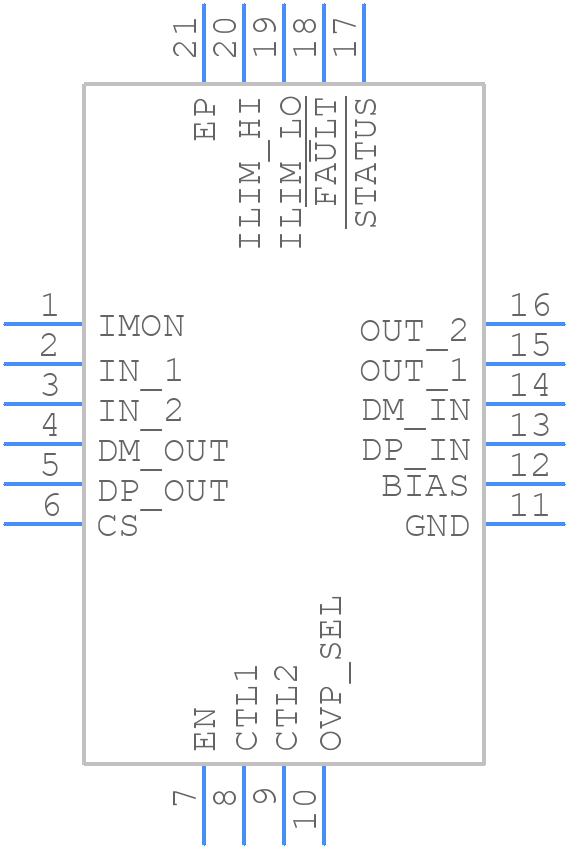

Use the download button to access the TPS254900AIRVCRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
