MANUAL RESET; POWER ON RESET GENERATOR; VOLTAGE MONITOR FOR POWER-FAIL OR LOW-BATTERY MONITORING
Adjustable Threshold:
NO
Analog IC - Other Type:
BATTERY BACKUP SUPERVISOR
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.19
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max (Isup):
0.04 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1.65 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+2.93V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS3619-33DGK Frequently Asked Questions (FAQs)
A good PCB layout for the TPS3619-33DGK involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and is placed close to the device. Also, avoid using capacitors with high inductance or resistance in the output filter.
The TPS3619-33DGK can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 3.5V to 15V for optimal performance and reliability.
The TPS3619-33DGK is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
The output voltage ripple of the TPS3619-33DGK can be calculated using the formula: ΔVout = (Iout * ESR) / (f * Cout), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, f is the switching frequency, and Cout is the output capacitance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3619-33DGK Overview

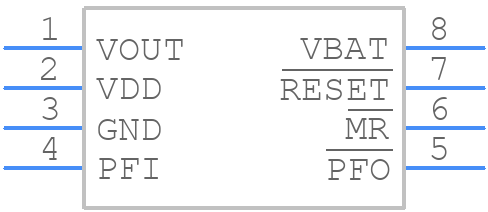

Use the download button to access the TPS3619-33DGK schematic symbol, PCB footprint, and 3D model.
