TPS3619-33DGKRG4 - Texas Instruments

Description: Supervisory Circuits Battery-Backup for RAM Retention

Download TPS3619-33DGKRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

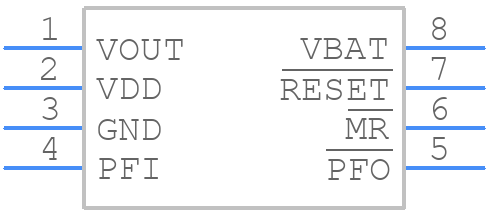

Symbol
TPS3619-33DGKRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3619-33DGKRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TPS3619-33DGKRG4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TPS3619-33DGKRG4 Details

  • Manufacturer Part Number:

    TPS3619-33DGKRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia, Mexico, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    MANUAL RESET; POWER ON RESET GENERATOR; VOLTAGE MONITOR FOR POWER-FAIL OR LOW-BATTERY MONITORING

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY BACKUP SUPERVISOR

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.93V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3619-33DGKRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for power management ICs, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • The output voltage tolerance of the TPS3619-33DGKRG4 is typically ±2% over the entire operating temperature range. To calculate the output voltage tolerance, you can use the formula: Output Voltage Tolerance = (Output Voltage x Tolerance Percentage) / 100. For example, if the output voltage is 3.3V and the tolerance percentage is 2%, the output voltage tolerance would be ±66mV.
  • The maximum input voltage that the TPS3619-33DGKRG4 can handle is 6.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or other protection circuitry to ensure that the input voltage remains within the specified range.
  • The TPS3619-33DGKRG4 has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. When the output voltage exceeds the OVP threshold (typically 3.9V), the device will shut down to prevent damage. You can also implement external OVP circuitry using a voltage comparator and a switch to disconnect the input power supply in case of an overvoltage condition.
  • The thermal shutdown temperature of the TPS3619-33DGKRG4 is typically 150°C. When the device temperature exceeds this threshold, it will shut down to prevent damage. The device will automatically restart when the temperature drops below 130°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS3619-33DGKRG4 Overview

Use the download button to access the TPS3619-33DGKRG4 schematic symbol, PCB footprint, and 3D model.
