TPS3619-33DGKG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - TPS3619-33DGKG4 - Supervisory Circuit, Active-Low Reset, 1.65V-5.5Vin,VSSOP-8

Download TPS3619-33DGKG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

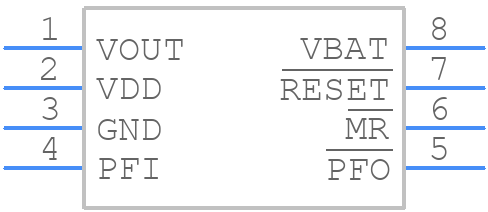

Symbol
TPS3619-33DGKG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3619-33DGKG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - dgk(s-pdso-g8
click to zoom
3D Models
TPS3619-33DGKG4 - Texas Instruments - 3D model - Small Outline Packages - dgk(s-pdso-g8
click to zoom

TPS3619-33DGKG4 Details

  • Manufacturer Part Number:

    TPS3619-33DGKG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia, Mexico, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    MANUAL RESET; POWER ON RESET GENERATOR; VOLTAGE MONITOR FOR POWER-FAIL OR LOW-BATTERY MONITORING

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY BACKUP SUPERVISOR

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.93V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3619-33DGKG4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS3619-33DGKG4 should prioritize minimizing the loop area of the power and ground traces to reduce electromagnetic interference (EMI). Place the input and output capacitors close to the device, and use a solid ground plane to reduce noise. Refer to the Texas Instruments application note 'TPS3619 PCB Layout Guidelines' for more information.
  • Choose input capacitors with a low equivalent series resistance (ESR) and a high ripple current rating to minimize voltage drops and ensure stable operation. For output capacitors, select ones with a low ESR and a high capacitance to filter out noise and ripple. Refer to the datasheet for recommended capacitor values and types.
  • The TPS3619-33DGKG4 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • To ensure proper power-up and power-down sequencing, connect the enable pin (EN) to a logic-level signal that is high during normal operation and low during shutdown. Use a soft-start circuit or a power-up sequencing controller to ensure a controlled voltage ramp-up and to prevent inrush currents.
  • To ensure EMC compliance, use a shielded enclosure, keep the device and its associated components away from sensitive circuits, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Follow the guidelines in the IEC 61000-4-x series of standards for EMC testing and compliance.
