TPS3707-50DGN - Texas Instruments

Description: Processor Supervisor 1.25V/4.55V 2.5V/3V/3.3V/5V 8-Pin HVSSOP EP Tube

Download TPS3707-50DGN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

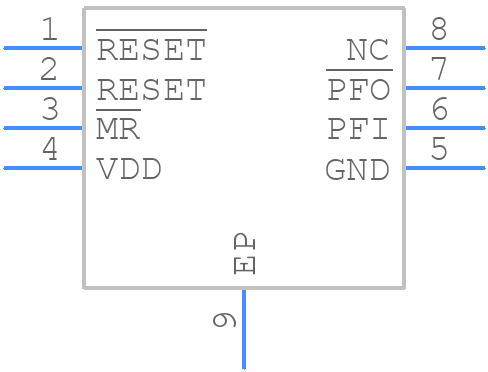

TPS3707-50DGN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3707-50DGN - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D -2021
click to zoom
3D Models
TPS3707-50DGN - Texas Instruments - 3D model - Small Outline Packages - DGN0008D -2021
click to zoom

TPS3707-50DGN Details

  • Manufacturer Part Number:

    TPS3707-50DGN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 4.55V; POWER ON RESET GENERATOR; MANUAL RESET INPUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.55V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3707-50DGN Frequently Asked Questions (FAQs)

  • The recommended layout for the TPS3707-50DGN involves placing the device close to the power source, using short and wide traces for the power lines, and keeping the sense lines away from the power lines to minimize noise. Additionally, a 10nF capacitor should be placed between the VCC and GND pins to filter out noise.
  • The values of R1 and R2 depend on the desired threshold voltage and hysteresis. A higher R1 value increases the threshold voltage, while a higher R2 value increases the hysteresis. The datasheet provides a formula to calculate the threshold voltage and hysteresis based on the resistor values.
  • The maximum voltage that can be applied to the VCC pin of the TPS3707-50DGN is 12V. Exceeding this voltage can damage the device.
  • The TPS3707-50DGN is rated for operation up to 125°C. However, the device's accuracy and reliability may be affected at high temperatures. It is recommended to derate the device's performance and consider using a heat sink if operating in a high-temperature environment.
  • The TPS3707-50DGN has a built-in power-up and power-down sequence control. The device will not assert the reset output until the input voltage has reached the threshold voltage, and will keep the reset output asserted until the input voltage has fallen below the threshold voltage minus the hysteresis.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TPS3707-50DGN Overview

Use the download button to access the TPS3707-50DGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS37, or try a keyword search, such as Power Management Circuits
