- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TPS5510D
- Part Number TPS5510D
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D
- Released Date Apr 25, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TPS5510D Details
-
Manufacturer Part Number:
TPS5510D
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Adjustable Threshold:
NO
-
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
-
JESD-30 Code:
R-PDSO-G8
TPS5510D Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the TPS5510D is 18V, but it's recommended to keep it below 15V for reliable operation.
-
To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor (at least 10uF), and add a small ceramic capacitor (around 10nF) between the VIN and GND pins.
-
The minimum ESR required for the output capacitor is 0.1 ohms, but it's recommended to use a capacitor with an ESR of 0.05 ohms or less for optimal performance.
-
The TPS5510D is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet for more information.
-
The output voltage of the TPS5510D can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
Trust Checks
Community Provided
System Verified
Community Approved
TPS5510D Overview

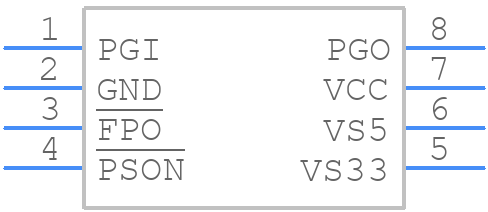

Use the download button to access the TPS5510D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS55,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
