The recommended layout and placement for the TPS65072RSLR can be found in the Texas Instruments application note 'TPS65072RSLR Layout and Placement Guidelines' (SLVAE66). It provides guidance on component placement, routing, and thermal considerations to ensure optimal performance and reliability.
The TPS65072RSLR output voltage can be configured using the VOUT pin and an external resistor divider network. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 + R2) / R2. The values of R1 and R2 can be selected based on the desired output voltage and the input voltage range.
The TPS65072RSLR can handle input voltages up to 18V, but it is recommended to operate within the specified input voltage range of 2.7V to 15V for optimal performance and reliability.
To ensure stability and reliability, it is recommended to follow the guidelines in the datasheet and application notes, including proper component selection, layout, and thermal management. Additionally, it is recommended to perform thorough testing and validation of the design to ensure it meets the required specifications and operating conditions.
The TPS65072RSLR is rated for operation up to 125°C, but it is recommended to derate the output current and voltage based on the operating temperature to ensure reliability and prevent overheating. It is also recommended to use thermal management techniques, such as heat sinks or thermal pads, to reduce the junction temperature.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS65072RSLR Overview

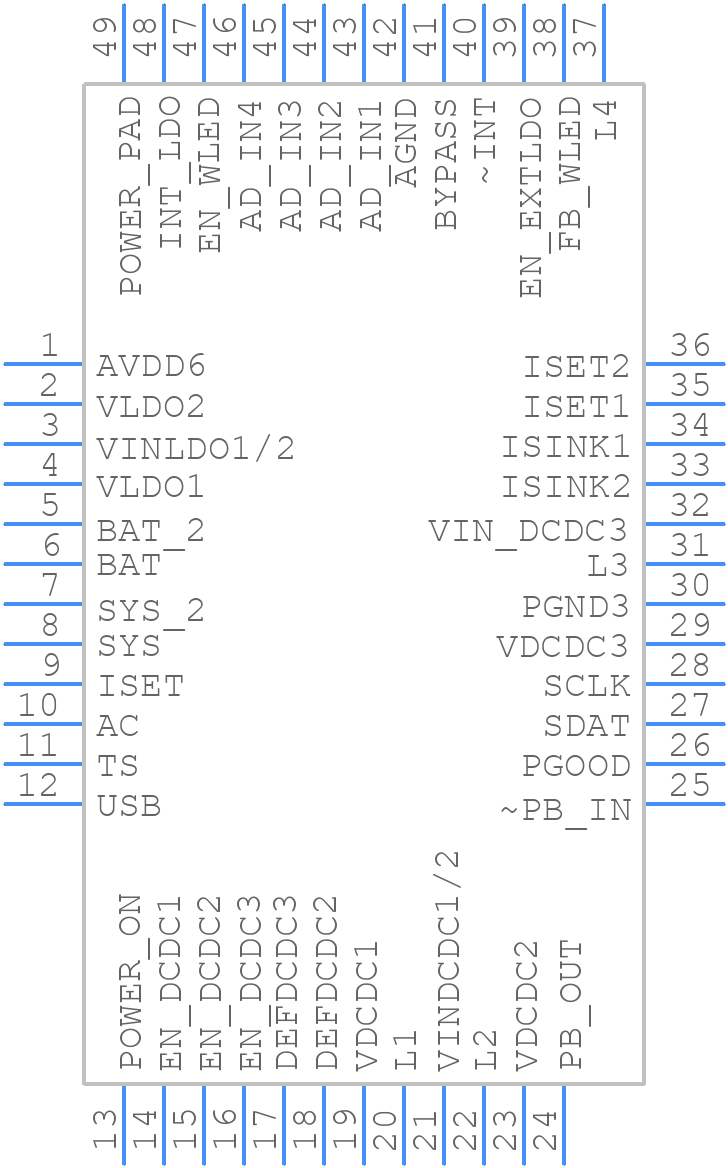

Use the download button to access the TPS65072RSLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
