SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.025 mA
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
1.8 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Switcher Configuration:
BOOST
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+1.7V
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS65150PWP Frequently Asked Questions (FAQs)
A good PCB layout for the TPS65150PWP involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of input and output capacitors for the TPS65150PWP depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 4.7uF for the input capacitor and 10uF for the output capacitor.
The TPS65150PWP is rated for operation from -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating, but the maximum junction temperature should not exceed 125°C.
To ensure stability, it's essential to follow the recommended PCB layout and component selection guidelines. Additionally, the output capacitor should be placed close to the device, and the input capacitor should be placed close to the input voltage source. It's also recommended to add a small series resistor (e.g., 1Ω) between the output capacitor and the load to prevent oscillation.
Yes, the TPS65150PWP is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for use in industrial and medical applications that require high reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65150PWP Overview

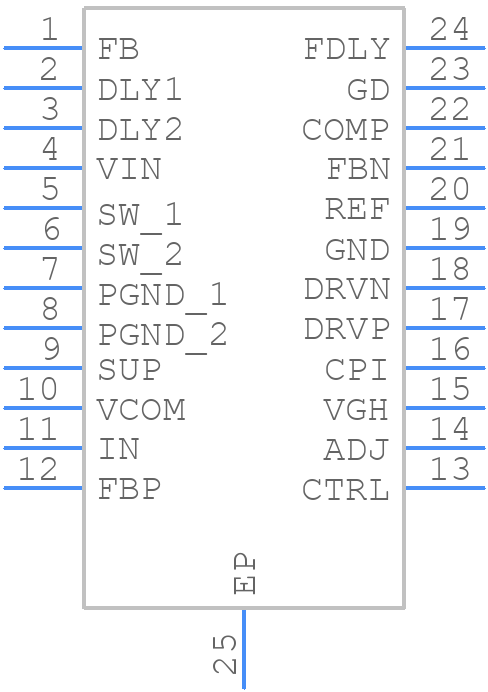

Use the download button to access the TPS65150PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
