SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.025 mA
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
1.8 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Switcher Configuration:
BOOST
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+1.7V
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS65150PWPRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
The choice of input and output capacitors depends on the specific application requirements. Generally, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides guidelines for capacitor selection, but it's essential to consider factors like voltage rating, capacitance value, and physical size.
The TPS65150PWPRG4 is rated for operation up to 85°C ambient temperature. However, it's essential to consider the thermal design and ensure that the device is properly cooled to maintain reliable operation.
The TPS65150PWPRG4 has built-in OVP and UVP features, but they can be adjusted or customized using external resistors and capacitors. The datasheet provides guidelines for implementing OVP and UVP, but it's essential to carefully design and test the protection circuitry to ensure reliable operation.
The recommended input voltage range for the TPS65150PWPRG4 is 2.7V to 5.5V. Operating outside this range may affect the device's performance, efficiency, and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65150PWPRG4 Overview

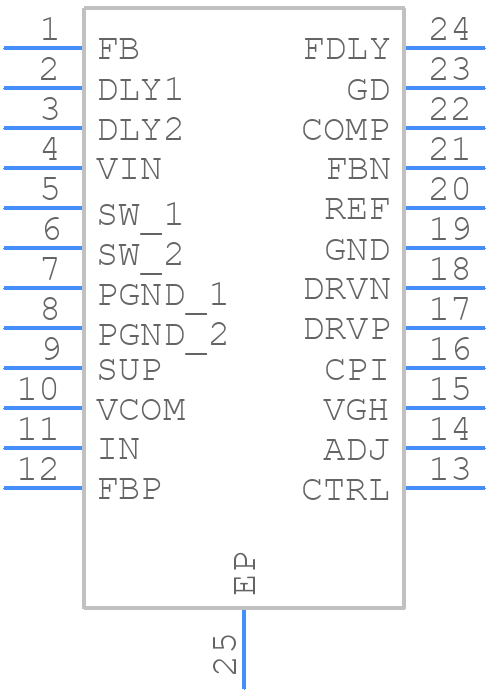

Use the download button to access the TPS65150PWPRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
