TPS65217DRSLR - Texas Instruments

Description: Power Management IC (PMIC) w/ 3 DC/DCs, 4 LDOs, Linear Battery Charger & White LED Driver

Download TPS65217DRSLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

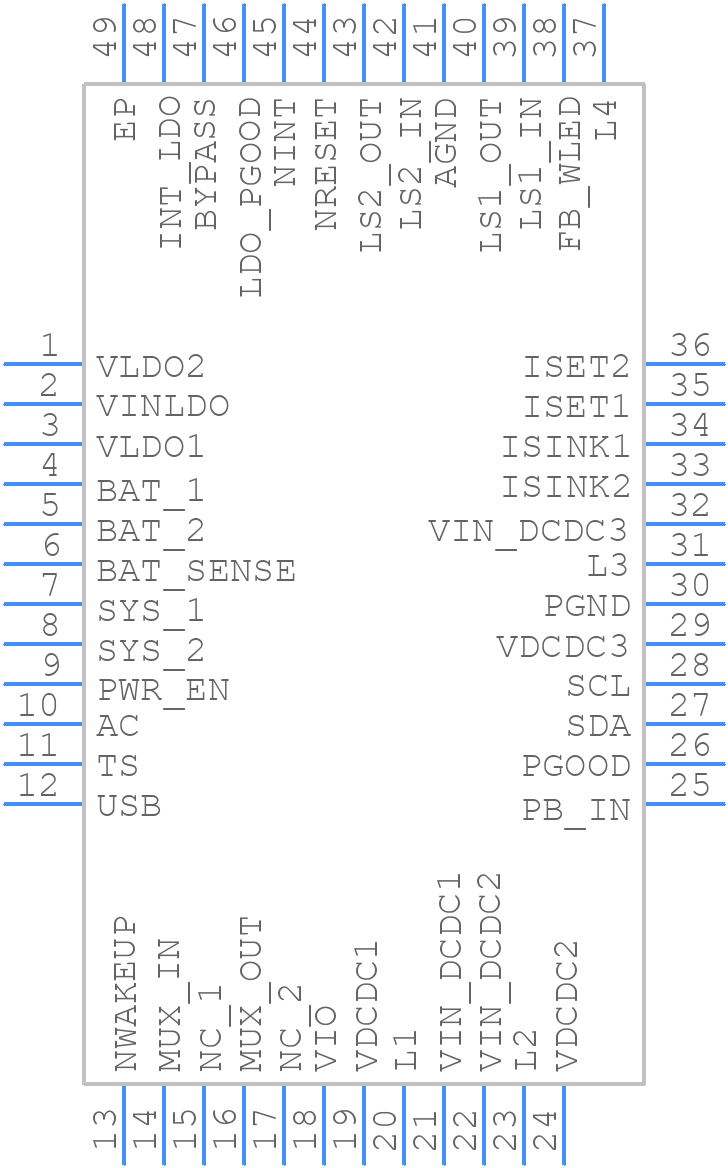

TPS65217DRSLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65217DRSLR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom
3D Models
TPS65217DRSLR - Texas Instruments - 3D model - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom

TPS65217DRSLR Details

  • Manufacturer Part Number:

    TPS65217DRSLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    DETECTION THRESHOLD VOLTAGE IS 6 VOLT; ALSO OPERATES IN BATTERY INPUT VOLTAGE FROM 0 TO 5.5 VOLT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.8 V

  • Input Voltage-Min:

    2.75 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    9

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    2000 mA

  • Supply Voltage-Max (Vsup):

    5.8 V

  • Supply Voltage-Min (Vsup):

    2.75 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2550 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65217DRSLR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65217DRSLR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors for the TPS65217DRSLR depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 4.7uF for the input capacitor and 10uF for the output capacitor.
  • The TPS65217DRSLR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the power dissipation of the device. In general, the device can operate up to 85°C ambient temperature with a maximum power dissipation of 2.5W.
  • The TPS65217DRSLR has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the GND pin. The value of the resistor determines the overcurrent threshold. A lower resistor value sets a higher overcurrent threshold, and vice versa.
  • Yes, the TPS65217DRSLR is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. Additionally, Texas Instruments provides a range of reliability data and qualification reports to support the use of the TPS65217DRSLR in high-reliability applications.
