TUSB8020BPHP - Texas Instruments

Description: TEXAS INSTRUMENTS - TUSB8020BPHP - USB HUB CONTROLLER, DUAL PORT, HTQFP-48

Download TUSB8020BPHP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

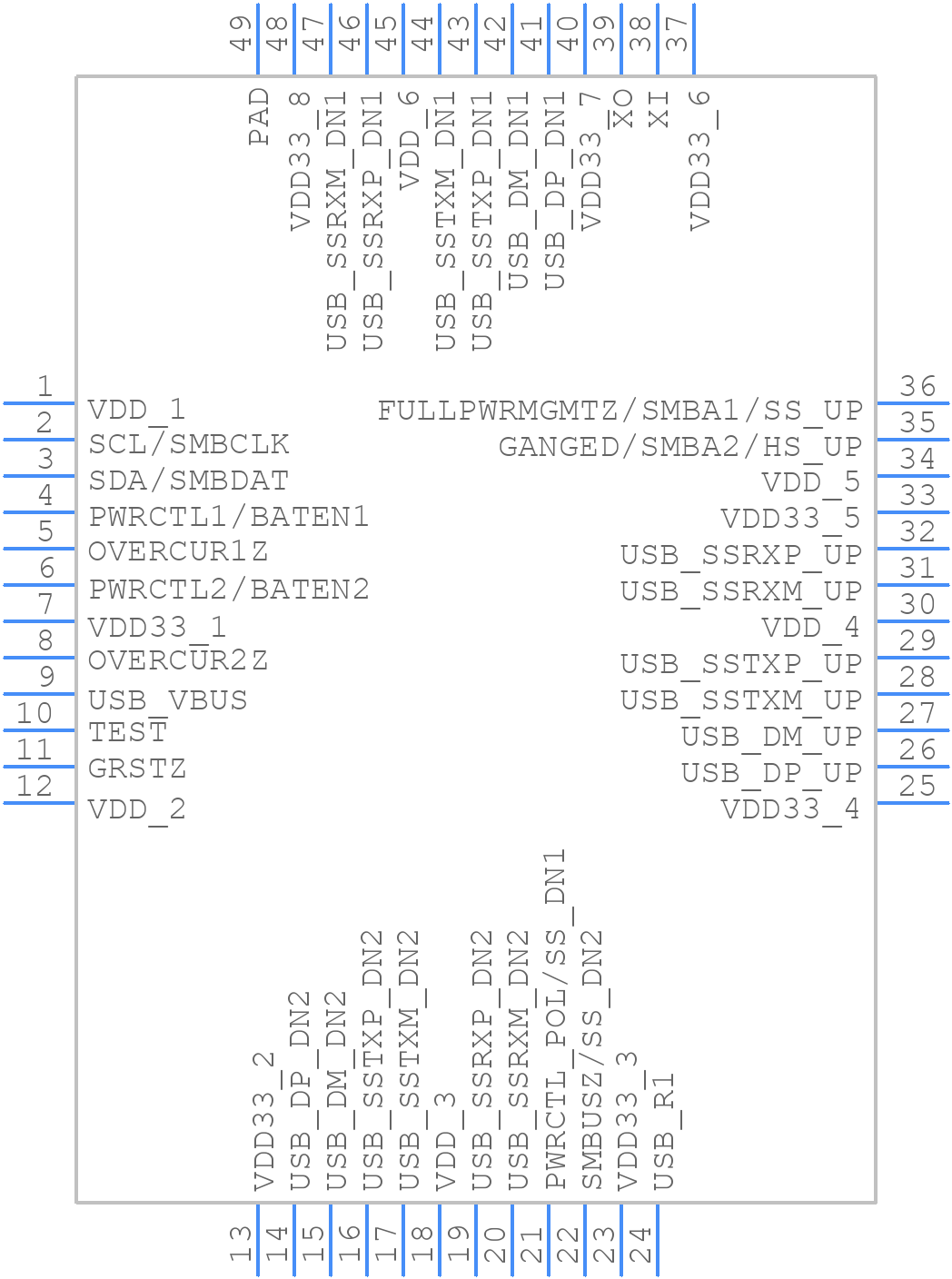

Symbol
TUSB8020BPHP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB8020BPHP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP (S-PQFP-G48)_2
click to zoom
3D Models
TUSB8020BPHP - Texas Instruments - 3D model - Quad Flat Packages - PHP (S-PQFP-G48)_2
click to zoom

TUSB8020BPHP Details

  • Manufacturer Part Number:

    TUSB8020BPHP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 3.3 SUPPLY

  • Bus Compatibility:

    I2C;SMBUS;USB

  • Clock Frequency-Max:

    24 MHz

  • Data Transfer Rate-Max:

    0.0125 MBps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    0.99 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB8020BPHP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the USB connector, and the differential pairs should be routed close together and away from noise sources.
  • Use a common-mode filter, such as a ferrite bead, on the USB differential pairs. Also, ensure that the PCB layout follows good signal integrity practices, such as minimizing trace lengths and using shielding where possible.
  • The TUSB8020BPHP supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to use high-quality, shielded cables to minimize signal degradation.
  • The TUSB8020BPHP has a built-in low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be put into a low-power state by disabling the transmitter and receiver circuits when not in use.
  • The TUSB8020BPHP has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB8020BPHP Overview

Use the download button to access the TUSB8020BPHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB8, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
