Texas Instruments provides a recommended PCB layout in the TVP7002PZPR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
To optimize the TVP7002PZPR for low power consumption, use the lowest possible clock frequency, disable unused peripherals, and adjust the voltage regulator module (VRM) settings. Additionally, consider using the device's power-down modes and dynamic voltage and frequency scaling (DVFS).
The TVP7002PZPR has a maximum junction temperature (TJ) of 125°C. Ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal interface material (TIM) to maintain a safe operating temperature.
Follow proper PCB design and layout guidelines, use shielding and filtering, and ensure that the device is properly grounded. Additionally, consider using electromagnetic interference (EMI) filters and ferrite beads to reduce emissions.
Implement robust error detection and correction mechanisms, use redundant systems and fail-safes, and ensure compliance with relevant industry standards (e.g., IEC 61508, DO-254). Additionally, consider using the device's built-in error correction and diagnostic features.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TVP7002PZPR Overview

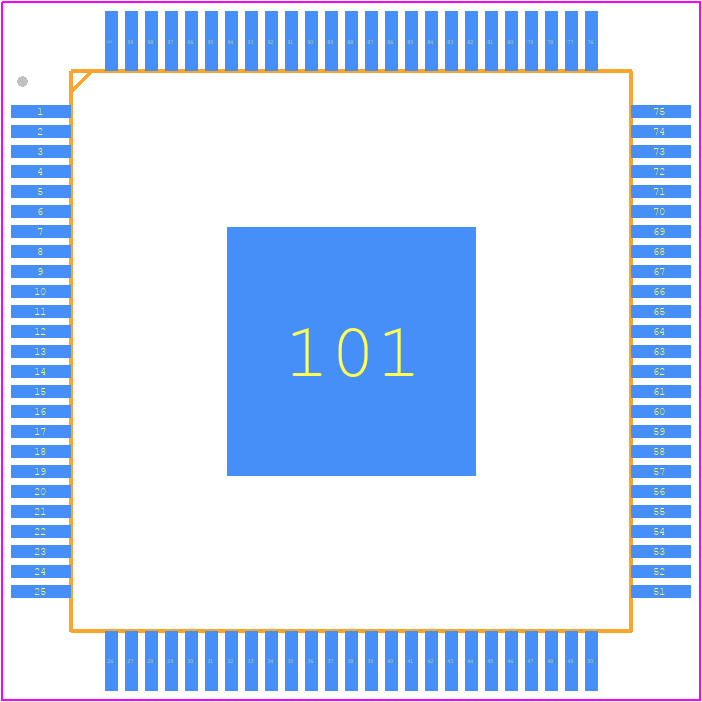

Use the download button to access the TVP7002PZPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP70,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
