The UC3625N is a high-frequency switching converter, and proper layout and placement are crucial to minimize EMI. TI recommends a compact layout with short traces, and placing the input and output capacitors close to the IC. Additionally, a solid ground plane and a shielded enclosure can help reduce EMI.
To optimize the UC3625N for low standby power consumption, ensure that the input voltage is as low as possible, and use a low-quiescent-current regulator for the VCC supply. Additionally, consider using a low-power mode or shutdown feature to reduce power consumption when the converter is not in use.
The UC3625N has a maximum junction temperature of 150°C. Ensure reliable operation by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Monitor the device temperature and adjust the design as needed to prevent overheating.
To troubleshoot oscillations or instability issues, check the PCB layout for noise coupling, ensure that the input and output capacitors are properly sized and placed, and verify that the feedback loop is properly compensated. Additionally, check for component tolerances and ensure that the device is operated within its recommended specifications.
When selecting the output inductor and capacitors for the UC3625N, consider the output voltage, current, and ripple requirements. Choose an inductor with a high saturation current and low DC resistance, and select capacitors with low ESR and high ripple current ratings. Ensure that the components are compatible with the switching frequency and operating conditions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UC3625N Overview

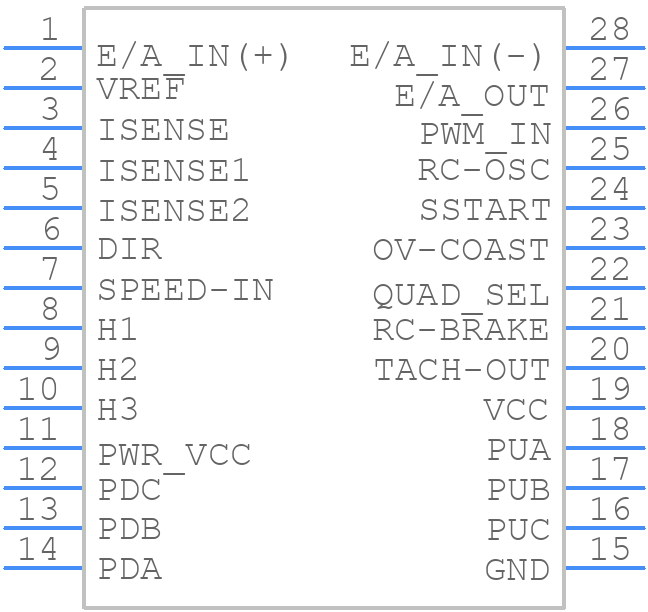

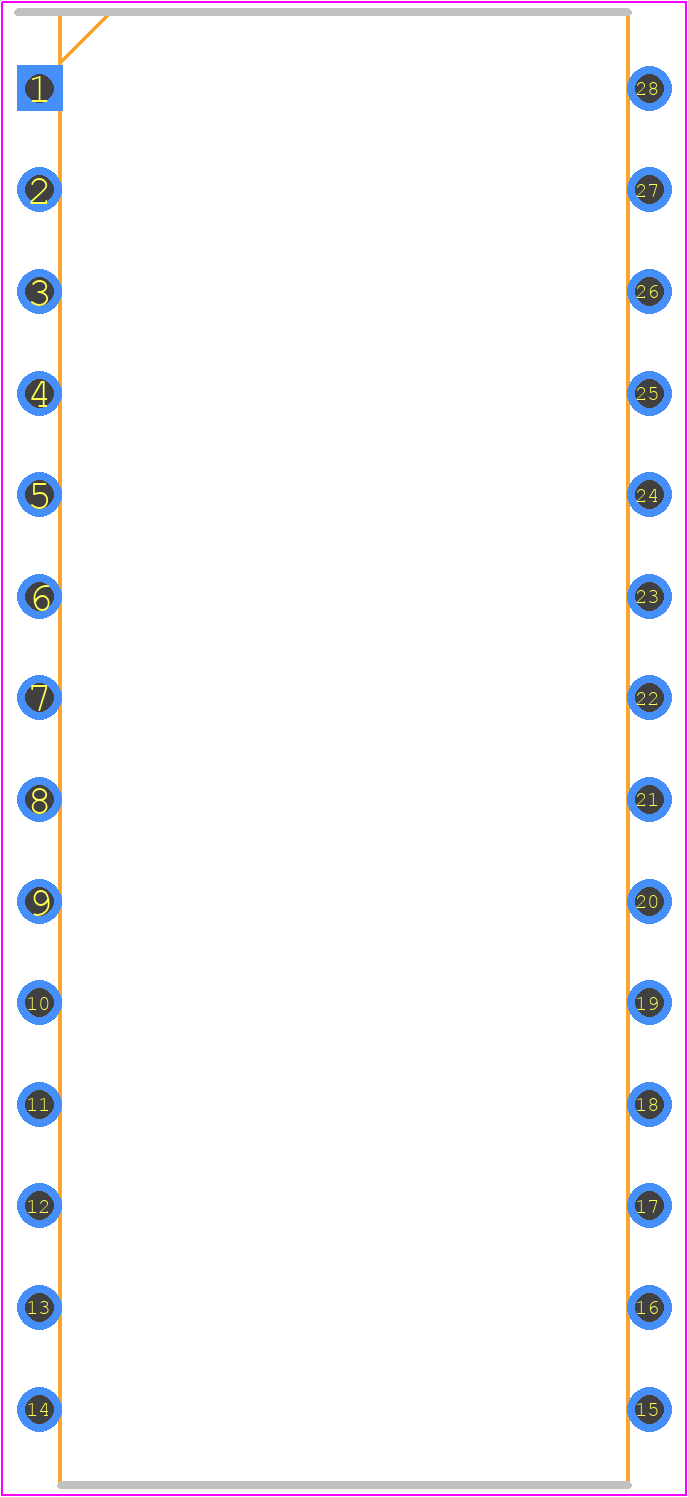

Use the download button to access the UC3625N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC362,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
