Technical Content
Part Image

UCC21710QDWQ1 - Texas Instruments

Description: single channel isolated gate driver

Download UCC21710QDWQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

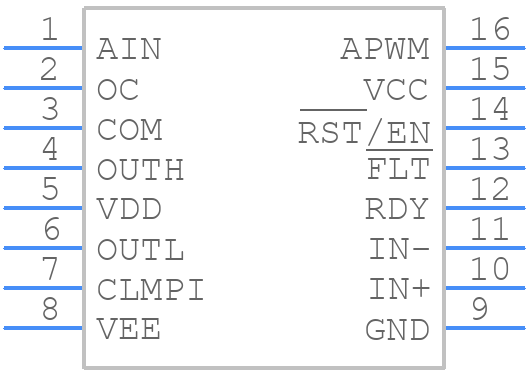

Symbol
UCC21710QDWQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC21710QDWQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B_
click to zoom
3D Models
UCC21710QDWQ1 - Texas Instruments - 3D model - Small Outline Packages - DW0016B_
click to zoom

UCC21710QDWQ1 Details

  • Manufacturer Part Number:

    UCC21710QDWQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    10 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

UCC21710QDWQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the high-frequency signals away from the low-frequency signals. Additionally, use a common mode choke and a shielded cable to reduce EMI.
  • The UCC21710QDWQ1 requires a power-on reset (POR) circuit to ensure proper startup. Use a voltage supervisor or a POR circuit to hold the device in reset until the power supply reaches a stable voltage.
  • The maximum cable length supported by the UCC21710QDWQ1 depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation.
  • Use a logic analyzer or an oscilloscope to capture the signals on the bus and debug the issue. Check the device's error flags and status registers to identify the source of the problem. Consult the datasheet and application notes for troubleshooting guidelines.
  • The UCC21710QDWQ1 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for thermal management guidelines and derating factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCC21710QDWQ1 Overview

Use the download button to access the UCC21710QDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21, or try a keyword search, such as MOSFET Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
