The UCC2808N-2 is a high-frequency switching device, so it's crucial to follow good PCB layout practices to minimize noise and EMI. TI recommends placing the device close to the power stage, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, decoupling capacitors should be placed close to the device's power pins.
The choice of external components, such as the bootstrap capacitor, bootstrap resistor, and current sense resistor, depends on the specific application and design requirements. TI provides guidelines and equations in the datasheet to help select these components. Additionally, the TI Power Stage Designer tool can be used to simplify the component selection process.
The maximum junction temperature for the UCC2808N-2 is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan.
Yes, the UCC2808N-2 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using automotive-grade processes. However, it's essential to follow the recommended design and layout guidelines to ensure reliable operation in these applications.
TI provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, the TI E2E community and support forums can be used to ask questions and get help from experienced engineers and TI experts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2808N-2 Overview

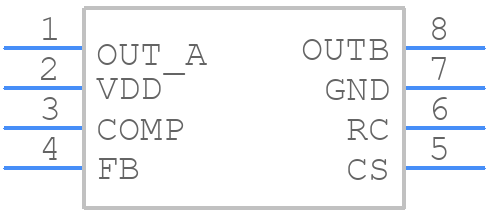

Use the download button to access the UCC2808N-2 schematic symbol, PCB footprint, and 3D model.
