The recommended layout and placement for the UCC3808N-2 involves keeping the high-frequency components (such as the switching FETs and diodes) close to the IC, using a solid ground plane, and minimizing the length of the traces carrying high-frequency signals. TI provides a recommended layout in the datasheet and application notes.
The selection of external components such as the input filter, output filter, and feedback network depends on the specific application requirements. TI provides guidelines and equations in the datasheet and application notes to help with component selection. Additionally, TI's WEBENCH online design tool can be used to simplify the design process.
The UCC3808N-2 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
Troubleshooting issues with the UCC3808N-2 involves identifying the symptoms, checking the power supply, input and output voltages, and signal waveforms. TI provides troubleshooting guidelines and application notes that can help identify and resolve common issues. Additionally, TI's support team and online forums can provide further assistance.
Yes, the UCC3808N-2 is compatible with lead-free soldering. TI ensures that its devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which prohibits the use of lead and other hazardous substances in electronic components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3808N-2 Overview

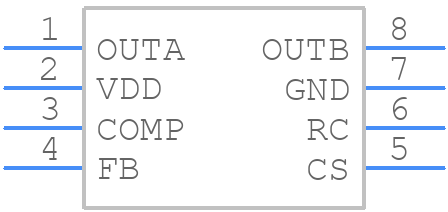

Use the download button to access the UCC3808N-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC38,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
