UCC3808N-2G4 - Texas Instruments

Description: TEXAS INSTRUMENTS - UCC3808N-2G4 - IC, PWM CONTROLLER, 3808, DIP8

Download UCC3808N-2G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

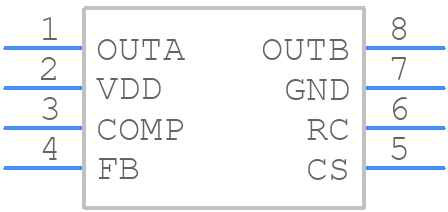

UCC3808N-2G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC3808N-2G4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
UCC3808N-2G4 - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

UCC3808N-2G4 Details

  • Manufacturer Part Number:

    UCC3808N-2G4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER
