A good PCB layout for the UCC2913D involves keeping the input and output stages separate, using a star-ground configuration, and placing the device close to the power source. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
The choice of input and output capacitors for the UCC2913D depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. A minimum capacitance of 10uF is recommended for the input capacitor, and 22uF for the output capacitor.
The UCC2913D is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, the device can operate up to 85°C ambient temperature with proper heat sinking and airflow.
To ensure stability, the UCC2913D requires a minimum output capacitance of 22uF, and the output voltage should be decoupled with a 10nF capacitor. Additionally, the input voltage should be well-regulated and the device should be operated within its recommended operating conditions.
Yes, the UCC2913D can be used in a synchronous rectification topology. However, additional components such as a synchronous rectifier controller and a power MOSFET are required. The UCC2913D provides the necessary drive signals for the synchronous rectifier.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2913D Overview

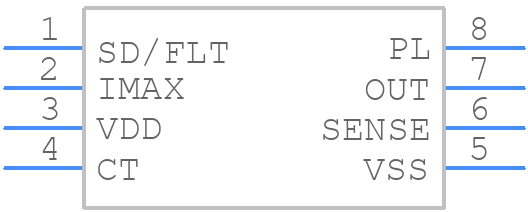

Use the download button to access the UCC2913D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC29,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
